Opta 137GW

Opta 137GW; Loewe-Opta; (ID = 25529) Radio

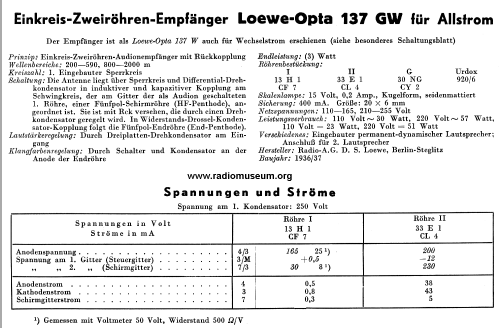

Opta 137GW; Loewe-Opta; (ID = 25530) Radio

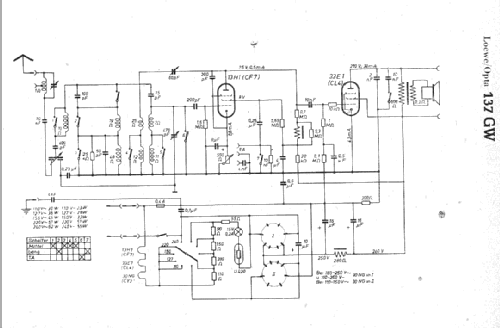

Opta 137GW; Loewe-Opta; (ID = 8372) Radio

Opta 137GW; Loewe-Opta; (ID = 1430998) Radio

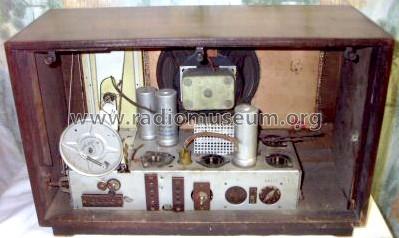

Opta 137GW; Loewe-Opta; (ID = 50176) Radio Opta 137GW; Loewe-Opta; (ID = 40024) Radio
Opta 137GW; Loewe-Opta; (ID = 50177) Radio
Use red slider bar for more.

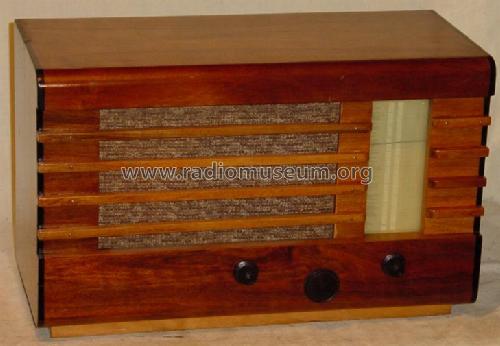

Opta 137GW; Loewe-Opta; (ID = 50176) Radio
Loewe-Opta;: Opta 137GW [Radio] ID = 50176 729x505
Select picture or schematic to display from thumbnails on the right and click for download.
For model Opta 137GW, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: 13H1 or CF7 33E1 or CL4 30NG or CY2 U920/6
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110; 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Opta 137GW - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 310 x 248 mm / 20.5 x 12.2 x 9.8 inch
Notes

.

Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 186.00 RM
Collectors' prices
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
