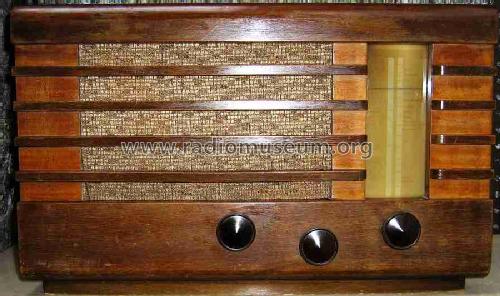

Opta 137W; Loewe-Opta; (ID = 40486) Radio
Loewe-Opta;: Opta 137W [Radio] ID = 40486 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Opta 137W, Loewe-(Opta); Deutschland:
Quelle: eBay Deutschland - welche Variante ist nicht ersichtlich

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: 4H1 or AF7 4E1 or AL4 140NG or AZ1
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Opta 137W - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 310 x 246 mm / 20.5 x 12.2 x 9.7 inch
Notes

Sparschaltung zur Verminderung der Leistungsaufnahme durch Umschaltung der Sekundärwicklung des Netztrafos.

Entspricht Loewe RL137W.

Net weight (2.2 lb = 1 kg) 14.4 kg / 31 lb 11.5 oz (31.718 lb)
Price in first year of sale 163.00 RM
Collectors' prices
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
