Loewe-Opta;: Dublette zu ID= 2625 [Radio] ID = 164503 920x586
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dublette zu ID= 2625, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 9999/9999 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: AF7 AL4 AZ1
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Dublette zu ID= 2625 - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 310 x 220 mm / 19.7 x 12.2 x 8.7 inch
Notes Sparschaltung zur Verminderung der Leistungsaufnahme durch Umschaltung der Primärwicklungen.
Net weight (2.2 lb = 1 kg) 10.3 kg / 22 lb 11 oz (22.687 lb)
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb

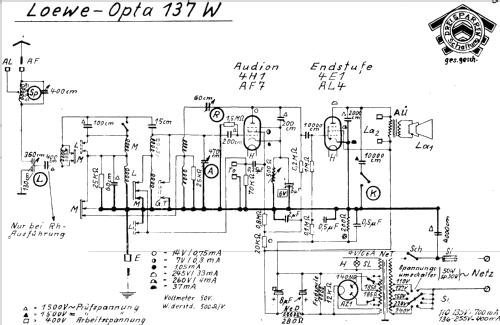

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
