Patrizier 53 230

Patrizier 53 230; Loewe-Opta; (ID = 698431) TV Radio

Patrizier 53 230; Loewe-Opta; (ID = 698432) TV Radio
Use red slider bar for more.
Patrizier 53 230; Loewe-Opta; (ID = 698431) TV Radio

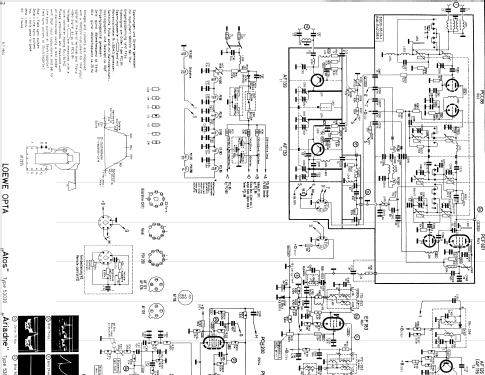

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1964/1965 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 21: PCC88 PCF801 EF183 EF80 PCL84 PCH200 PCL85 PL500 PY88 DY86 PCL86 PCF802 A59-11W
Semiconductors (the count is only for transistors) 4:
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Wave Bands given in the notes.
Details Changer (Record changer); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Patrizier 53 230 - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1700 x 960 x 480 mm / 66.9 x 37.8 x 18.9 inch
Notes Rundfunk-Stereo-Chassis 42892 mit LMKU; TV=VHF/UHF. Tonbandgerät Optacord 403, 404, 412 oder 414 nachträglich einsetzbar.
Net weight (2.2 lb = 1 kg) 113 kg / 248 lb 14.4 oz (248.899 lb)
Price in first year of sale 4'298.00 DM
External source of data Erb
Source of data Handbuch VDRG 1964/1965
