Percy 6955

Percy 6955; Loewe-Opta; (ID = 654702) Radio

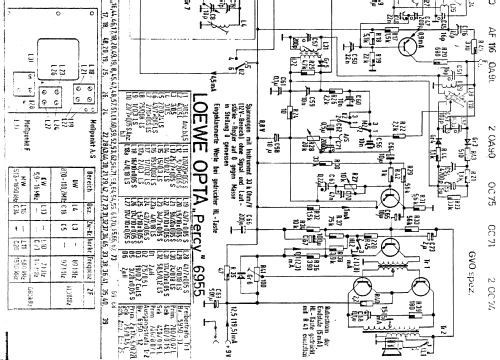

Percy 6955; Loewe-Opta; (ID = 654703) Radio
Percy 6955; Loewe-Opta; (ID = 594299) Radio Percy 6955; Loewe-Opta; (ID = 594300) Radio
Percy 6955; Loewe-Opta; (ID = 1276434) Radio Percy 6955; Loewe-Opta; (ID = 1276435) Radio
Use red slider bar for more.
Percy 6955; Loewe-Opta; (ID = 594299) Radio
Loewe-Opta;: Percy 6955 [Radio] ID = 594299 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Percy 6955, Loewe-(Opta); Deutschland:
Mein eigenes Gerät

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 OC75 OC71 OC74 OC74
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Percy 6955 - Loewe-Opta; Deutschland
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 185 x 80 mm / 11 x 7.3 x 3.1 inch
Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Price in first year of sale 249.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb
