Percy 6959

Percy 6959; Loewe-Opta; (ID = 934063) Radio Percy 6959; Loewe-Opta; (ID = 933368) Radio
Percy 6959; Loewe-Opta; (ID = 934064) Radio Percy 6959; Loewe-Opta; (ID = 933360) Radio

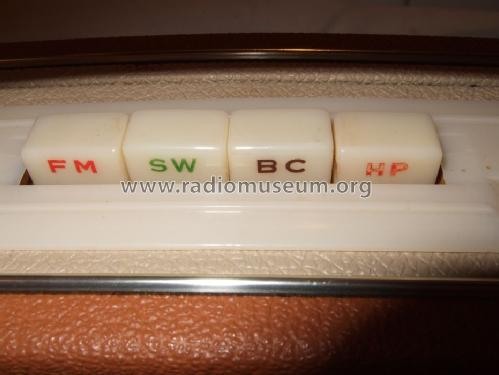

Percy 6959; Loewe-Opta; (ID = 933369) Radio Percy 6959; Loewe-Opta; (ID = 934065) Radio
Percy 6959; Loewe-Opta; (ID = 934067) Radio Percy 6959; Loewe-Opta; (ID = 1915084) Radio
Percy 6959; Loewe-Opta; (ID = 1915085) Radio
Use red slider bar for more.
Percy 6959; Loewe-Opta; (ID = 934063) Radio
Loewe-Opta;: Percy 6959 [Radio] ID = 934063 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Percy 6959, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 OC75 OC71 OC74 OC74
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details

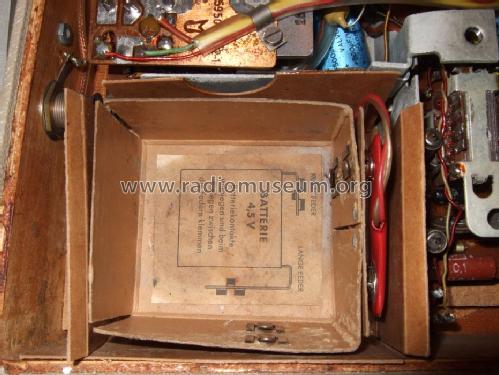

Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Percy 6959 - Loewe-Opta; Deutschland
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 185 x 80 mm / 11 x 7.3 x 3.1 inch
Notes

Percy 6959 ist ein Exportmodell. UKW/FM 88...108 MHz.

Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)

Model page created by Jürgen Bühler. See "Data change" for further contributors.
