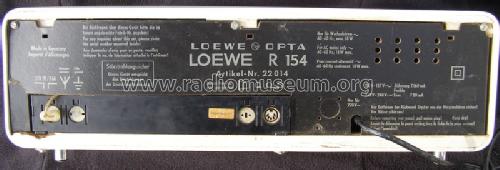

R154 22014; Loewe-Opta; (ID = 1559177) Radio
Loewe-Opta;: R154 22014 [Radio] ID = 1559177 800x272
Select picture or schematic to display from thumbnails on the right and click for download.
For model R154 22014, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1970/1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: BF195 BF121 BF125 BC252 BC172 BC172 AC187 AC188 TAA350 TAA293 AA143 1,4St1 AA119 AA119 BA170 BZ102 Si-Br-Gl
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: R154 22014 - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 160 x 140 mm / 19.7 x 6.3 x 5.5 inch
Notes

Gehäuse: Schleiflack weiss oder rot

UKW: 87,5 - 104 MHz
KW: 5850 - 10300 kHz
MW: 510 - 1630 kHz
LW: 147 - 350 kHz

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
External source of data Erb
Source of data Handbuch VDRG 1970/1971
Mentioned in -- Original-techn. papers.
