R172 51221

R172 51221; Loewe-Opta; (ID = 340524) Radio

R172 51221; Loewe-Opta; (ID = 340525) Radio

R172 51221; Loewe-Opta; (ID = 340526) Radio

R172 51221; Loewe-Opta; (ID = 340527) Radio

R172 51221; Loewe-Opta; (ID = 340528) Radio
R172 51221; Loewe-Opta; (ID = 721396) Radio R172 51221; Loewe-Opta; (ID = 423333) Radio
Use red slider bar for more.

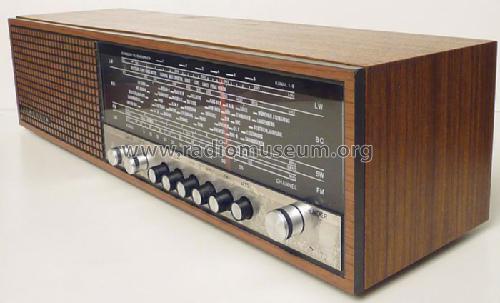

R172 51221; Loewe-Opta; (ID = 721396) Radio
Loewe-Opta;: R172 51221 [Radio] ID = 721396 700x425
Select picture or schematic to display from thumbnails on the right and click for download.
For model R172 51221, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1971/1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: BF195 AA143 BF121 TAA350 BF125 TAA293 AA119 AA119 BA170 BC253 BC172 BC172 AC187 AC188 1,4St1
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: R172 51221 - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 520 x 135 x 140 mm / 20.5 x 5.3 x 5.5 inch
Notes Gehäuse in Nussbaum, natur oder Schleiflack, weiss oder rot.
Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
External source of data Erb
Source of data Handbuch VDRG 1971/1972
Literature/Schematics (1) -- Original-techn. papers.
