RC-Messbrücke (Meßbrücke) 4110

Loewe-(Opta); Deutschland

  • Year
  • 1946
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 115475
    • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case
  • from Radiomuseum.org

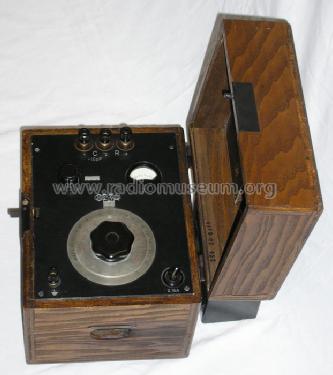

  • Model: RC-Messbrücke 4110 - Loewe-Opta; Deutschland
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 230 x 230 x 190 mm / 9.1 x 9.1 x 7.5 inch
  • Notes
  • Messbereich: 0,1 Ω bis 10 MΩ; 10 pF bis 50 µF (jeweils in 5 Bereichen). Bei Verwendung  zusätzlicher R- oder C-Normale auch höhere Werte messbar.

    Erste Modelle auch mit RV12P200, später auch Exportvariante mit russischen Röhren (OSW-Typen?) und kyrillischer Beschriftung.

    Hergestellt im Werk Leipzig der OPTA-RADIO AG.

  • Net weight (2.2 lb = 1 kg)
  • 6.6 kg / 14 lb 8.6 oz (14.537 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • -- Schematic

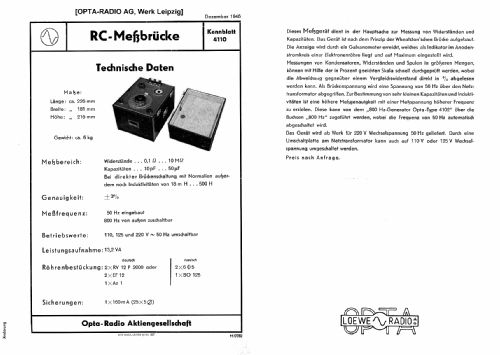

  RC-Messbrücke Opta 4110 Beschreibung 888 KB
  • Documents regarding this model
  • Author
  • Model page created by Andreas Hamel. See "Data change" for further contributors.
