Stadion 1634SL

Stadion 1634SL; Loewe-Opta; (ID = 290320) Television

Stadion 1634SL; Loewe-Opta; (ID = 290321) Television
Stadion 1634SL; Loewe-Opta; (ID = 2215048) Television Stadion 1634SL; Loewe-Opta; (ID = 2215049) Television
Stadion 1634SL; Loewe-Opta; (ID = 2215323) Television Stadion 1634SL; Loewe-Opta; (ID = 232335) Television
Stadion 1634SL; Loewe-Opta; (ID = 687613) Television
Use red slider bar for more.

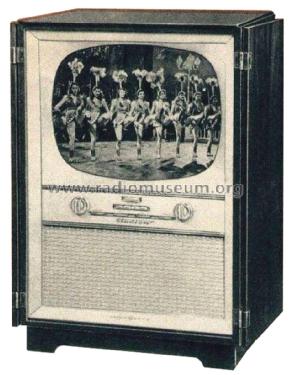

Stadion 1634SL; Loewe-Opta; (ID = 2215048) Television
Loewe-Opta;: Stadion 1634SL [Television] ID = 2215048 933x1196
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stadion 1634SL, Loewe-(Opta); Deutschland:
Q: Loewe-Opta, Produkt-Katalog '57

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1957/1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: AW53-80
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Stadion 1634SL - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 610 x 940 x 530 mm / 24 x 37 x 20.9 inch
Notes

Anschluss für Kabelfernbedienung FB II (2) - (lautstärke, Helligkeit und Kontrast).

Net weight (2.2 lb = 1 kg) 56 kg / 123 lb 5.6 oz (123.348 lb)
Price in first year of sale 1'298.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1957/58

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
