Stadion 1655

Stadion 1655; Loewe-Opta; (ID = 247544) Television

Stadion 1655; Loewe-Opta; (ID = 247545) Television

Stadion 1655; Loewe-Opta; (ID = 247546) Television

Stadion 1655; Loewe-Opta; (ID = 742141) Television

Stadion 1655; Loewe-Opta; (ID = 742142) Television

Stadion 1655; Loewe-Opta; (ID = 742143) Television

Stadion 1655; Loewe-Opta; (ID = 742144) Television

Stadion 1655; Loewe-Opta; (ID = 742145) Television
Use red slider bar for more.
Stadion 1655; Loewe-Opta; (ID = 247544) Television

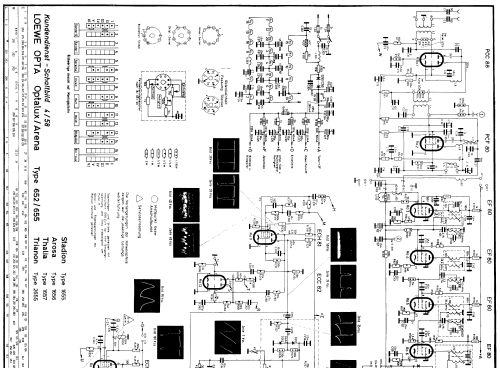

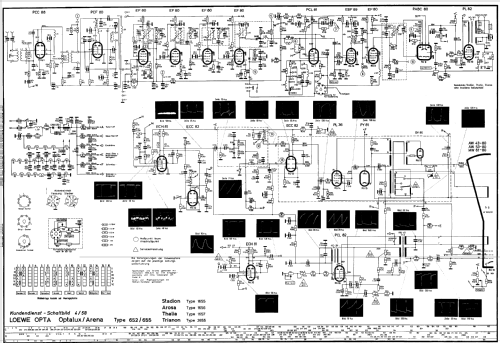

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1958/1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: AW53-80
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Stadion 1655 - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 610 x 940 x 530 mm / 24 x 37 x 20.9 inch
Notes Technische Daten wie Optalux 652, jedoch mit 53-cm-Bildröhre; Standgerät mit verschließbaren Türen; auch in 4-Normen-Ausführung lieferbar.
Net weight (2.2 lb = 1 kg) 57 kg / 125 lb 8.8 oz (125.551 lb)
Price in first year of sale 1'298.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1958/59

Model page created by Bernd P. Kieck. See "Data change" for further contributors.



All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1583 models, 1313 with images and 1154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
