Stereo-Decoder 42 945

Stereo-Decoder 42 945; Loewe-Opta; (ID = 523831) mod-past25

Stereo-Decoder 42 945; Loewe-Opta; (ID = 1507172) mod-past25

Stereo-Decoder 42 945; Loewe-Opta; (ID = 1507173) mod-past25
Stereo-Decoder 42 945; Loewe-Opta; (ID = 562128) mod-past25 Stereo-Decoder 42 945; Loewe-Opta; (ID = 562129) mod-past25
Stereo-Decoder 42 945; Loewe-Opta; (ID = 562131) mod-past25 Stereo-Decoder 42 945; Loewe-Opta; (ID = 1396148) mod-past25
Use red slider bar for more.
Stereo-Decoder 42 945; Loewe-Opta; (ID = 562128) mod-past25

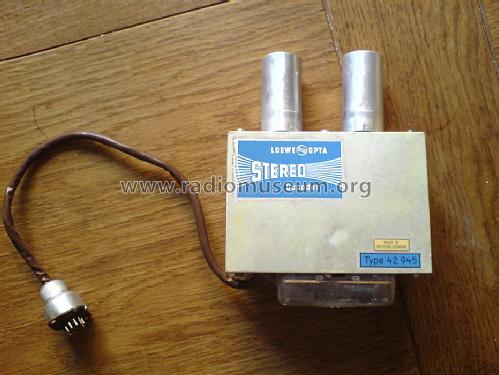

Loewe-Opta;: Stereo-Decoder 42 945 [mod-past25] ID = 562128 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo-Decoder 42 945, Loewe-(Opta); Deutschland:
mit frdl. Genehmigung von vintage audio & lifestyle

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1963/1964 Category: Radio module post 1925 (not a part, not a key)
Valves / Tubes 2: ECF80 ECC83
Semiconductors (the count is only for transistors) 1: AC127
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo-Decoder 42 945 - Loewe-Opta; Deutschland
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 114 x 150 x 44 mm / 4.5 x 5.9 x 1.7 inch
Notes Dioden: 6× AA118
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 79.00 DM
Collectors' prices
External source of data Erb
Source of data Handbuch VDRG 1963/1964
