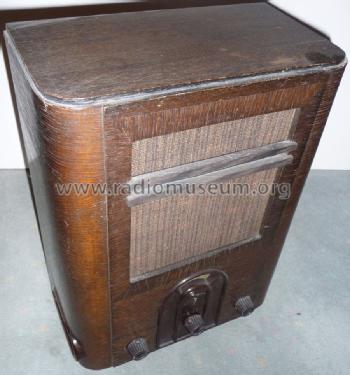

VE301B; Loewe-Opta; (ID = 1349938) Radio
Loewe-Opta;: VE301B [Radio] ID = 1349938 900x964

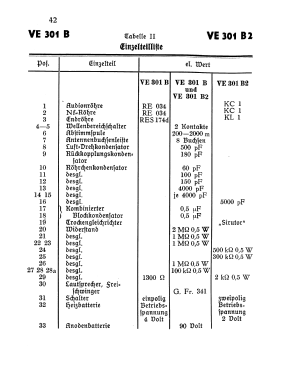

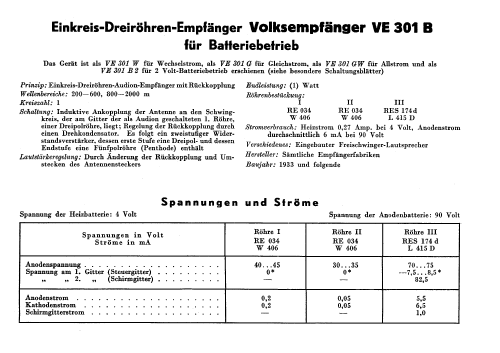

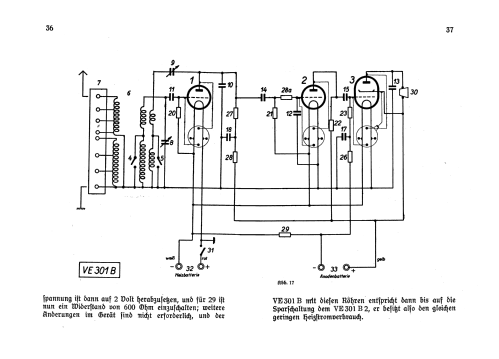

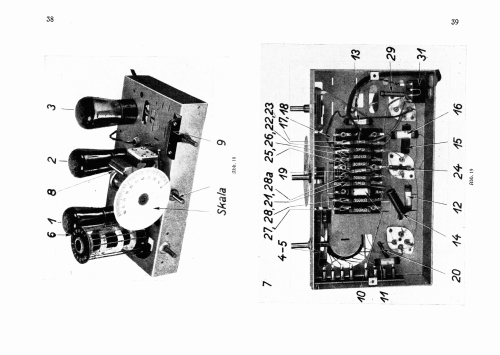

Select picture or schematic to display from thumbnails on the right and click for download.
For model VE301B, Loewe-(Opta); Deutschland
Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name
Löwe Radio
Year: 1933–1936 perfect model Category: Broadcast Receiver - or past WW2 Tuner

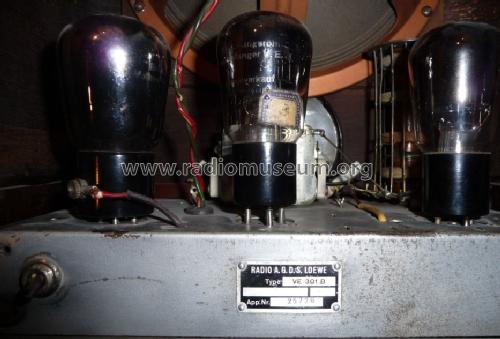

Valves / Tubes 3: RE034 RE034 RES174d
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Power type and voltage Storage and/or dry batteries / 90 & 4 Volt
Loudspeaker Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).
Power out
from Model: VE301B - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 295 x 393 x 175 mm / 11.6 x 15.5 x 6.9 inch
Notes Holzgehäuse.
Da nur Rückwand und meist das Typenschild den Hersteller zeigen, kann nicht immer nach diesem sortiert werden. Im übrigen sind die Produkte der verschiedenen Hersteller identisch.
Eine Auflistung aller deutschen Hersteller ist hier zu finden.

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.

All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1583 models, 1310 with images and 1154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
