Autolor 1B13

Autolor 1B13; Lorenz; Berlin, (ID = 8814) Car Radio

Autolor 1B13; Lorenz; Berlin, (ID = 538780) Car Radio
Autolor 1B13; Lorenz; Berlin, (ID = 1032205) Car Radio
Use red slider bar for more.

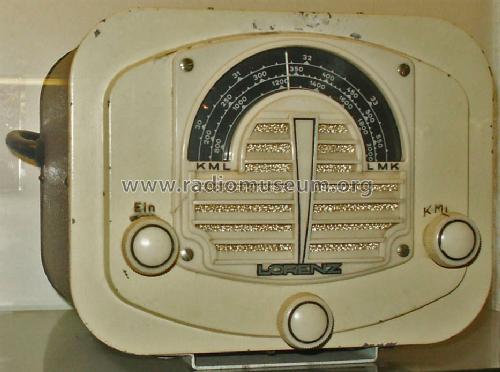

Autolor 1B13; Lorenz; Berlin, (ID = 1032205) Car Radio
Lorenz; Berlin,: Autolor 1B13 [Car Radio] ID = 1032205 933x695
Select picture or schematic to display from thumbnails on the right and click for download.
For model Autolor 1B13, Lorenz; Berlin, Zuffenhausen u.a.:
Gerät ist im Rundfunk Museum der Stadt Fürth ausgestellt.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1950–1952 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: EF13 ECH11 EF11 EBC11 EDD11 EZ11
Semiconductors (the count is only for transistors) 32/1NT6
Main principle Superhet with RF-stage; ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Autolor 1B13 - Lorenz; Berlin, Zuffenhausen u
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 157 x 205 x 204 mm / 6.2 x 8.1 x 8 inch
Notes   Mit Zerhacker 32/1NT6.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 385.00 DM
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
Mentioned in Funkgeschichte der GFGF (9503)
