Havel W; Lorenz; Berlin, (ID = 623239) Radio
Lorenz; Berlin,: Havel W [Radio] ID = 623239 913x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Havel W, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH71 ECH71 EBL71 EM11
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)

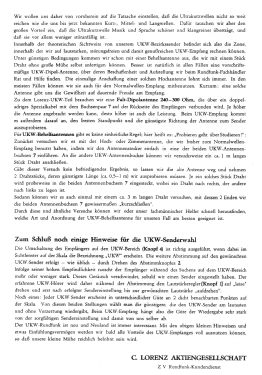

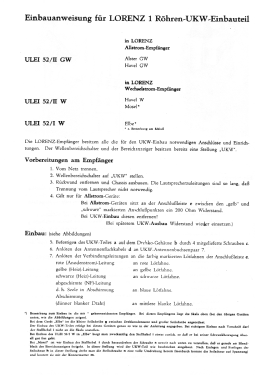

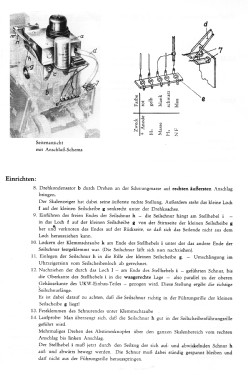

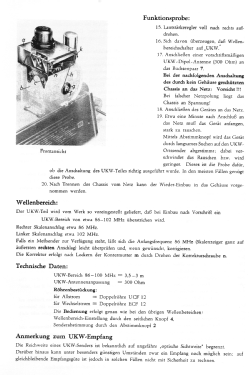

Wave bands Ready for FM, has Broadcast, Long Wave, Short wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Havel W - Lorenz; Berlin, Zuffenhausen u
Material Wooden case
Dimensions (WHD) 520 x 340 x 210 mm / 20.5 x 13.4 x 8.3 inch
Notes Achtung: Chassis des Gerätes führt Netzspannung!
Der Netztransformator des Lorenz Havel W ist als Spartrafo ohne galvanische Netztrennung ausgebildet.
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Price in first year of sale 303.00 DM
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Mentioned in Funkschau (5106)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
