Konzertmeister GW; Lorenz; Berlin, (ID = 22695) Radio
Lorenz; Berlin,: Konzertmeister GW [Radio] ID = 22695 884x528

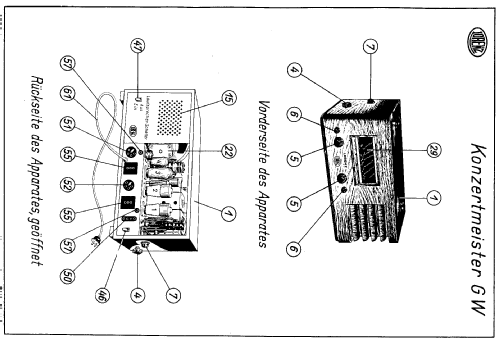

Select picture or schematic to display from thumbnails on the right and click for download.
For model Konzertmeister GW, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner

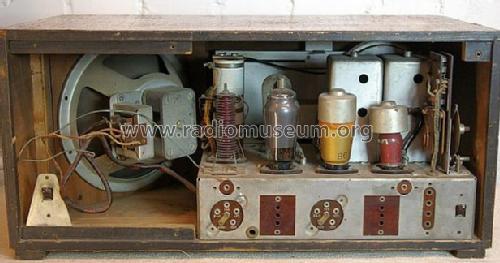

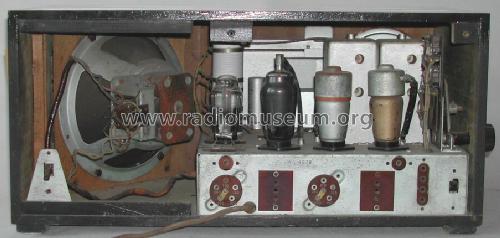

Valves / Tubes 4: CF3 CF7 CL2 CY1 U920 or EUX
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details

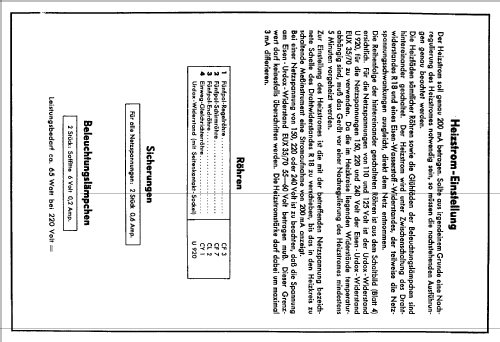

Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Konzertmeister GW - Lorenz; Berlin, Zuffenhausen u
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 590 x 330 x 270 mm / 23.2 x 13 x 10.6 inch
Net weight (2.2 lb = 1 kg) 16.5 kg / 36 lb 5.5 oz (36.344 lb)
Price in first year of sale 256.00 RM
Source of data Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
