Lichtenstein WA

Lichtenstein WA; Lorenz; Berlin, (ID = 360730) Radio
Lichtenstein WA; Lorenz; Berlin, (ID = 288620) Radio Lichtenstein WA; Lorenz; Berlin, (ID = 456760) Radio
Lichtenstein WA; Lorenz; Berlin, (ID = 456761) Radio Lichtenstein WA; Lorenz; Berlin, (ID = 456762) Radio

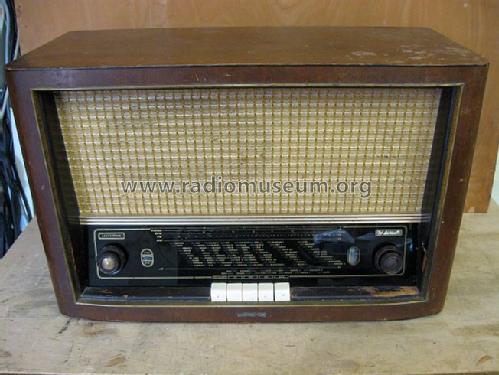

Lichtenstein WA; Lorenz; Berlin, (ID = 1511186) Radio
Use red slider bar for more.
Lichtenstein WA; Lorenz; Berlin, (ID = 288620) Radio
Lorenz; Berlin,: Lichtenstein WA [Radio] ID = 288620 933x601
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lichtenstein WA, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EC92 EC92 ECH81 EF93 EM85 EABC80 EL90
Main principle Superheterodyne (common); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 115/230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Lichtenstein WA - Lorenz; Berlin, Zuffenhausen u
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 570 x 370 x 280 mm / 22.4 x 14.6 x 11 inch
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 329.00 DM
Source of data Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 1, Ernst Erb


All listed radios etc. from Lorenz; Berlin, Zuffenhausen u.a.
Here you find 706 models, 558 with images and 339 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Lorenz; Berlin,: Lichtenstein WA
Threads: 2 | Posts: 2
Hits: 1331     Replies: 0
lorenz: WA; Lichtenstein
Stefan Kälin
09.Jul.07
  1 Schweizer Version (Super Lux Medium) mit AZ 12.Daher kein Trenntrafo?

Hits: 1259     Replies: 0
lorenz: WA; Lichtenstein
Ottmar Lauth
22.Jan.07
  1 Interessant an diesem Gerät ist die Skala. Sie zeigt ( ganz oben) die UKW - Kanaleinteilung von 1952 und die geänderte von 1953.

Lorenz; Berlin,: Lichtenstein WA
