Super 200W

Super 200W; Lorenz; Berlin, (ID = 68325) Radio

Super 200W; Lorenz; Berlin, (ID = 68328) Radio

Super 200W; Lorenz; Berlin, (ID = 68329) Radio

Super 200W; Lorenz; Berlin, (ID = 68330) Radio

Super 200W; Lorenz; Berlin, (ID = 68336) Radio

Super 200W; Lorenz; Berlin, (ID = 68332) Radio

Super 200W; Lorenz; Berlin, (ID = 68333) Radio

Super 200W; Lorenz; Berlin, (ID = 68327) Radio

Super 200W; Lorenz; Berlin, (ID = 68337) Radio

Super 200W; Lorenz; Berlin, (ID = 68334) Radio
Super 200W; Lorenz; Berlin, (ID = 2024403) Radio Super 200W; Lorenz; Berlin, (ID = 2024404) Radio
Super 200W; Lorenz; Berlin, (ID = 2024405) Radio Super 200W; Lorenz; Berlin, (ID = 1580319) Radio
Super 200W; Lorenz; Berlin, (ID = 13207) Radio Super 200W; Lorenz; Berlin, (ID = 3818) Radio
Super 200W; Lorenz; Berlin, (ID = 3816) Radio Super 200W; Lorenz; Berlin, (ID = 3814) Radio
Super 200W; Lorenz; Berlin, (ID = 57137) Radio Super 200W; Lorenz; Berlin, (ID = 3815) Radio
Use red slider bar for more.

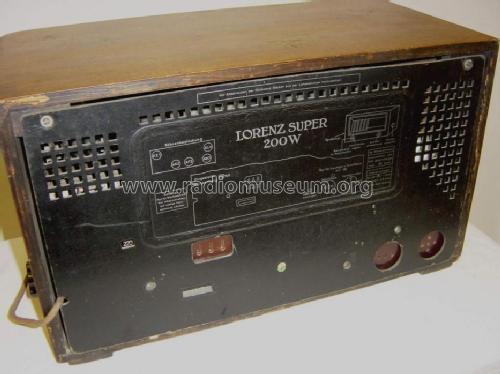

Super 200W; Lorenz; Berlin, (ID = 2024403) Radio
Lorenz; Berlin,: Super 200W [Radio] ID = 2024403 1400x921
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 200W, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super 200W - Lorenz; Berlin, Zuffenhausen u
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 310 x 290 mm / 22 x 12.2 x 11.4 inch
Notes Feldstärkeinstrument, Bandbreitenregelung . Elektrisch baugleich mit Tefag-Tefadyn 200W.
Net weight (2.2 lb = 1 kg) 15.5 kg / 34 lb 2.3 oz (34.141 lb)
Price in first year of sale 230.00 RM
Collectors' prices
Source of data Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

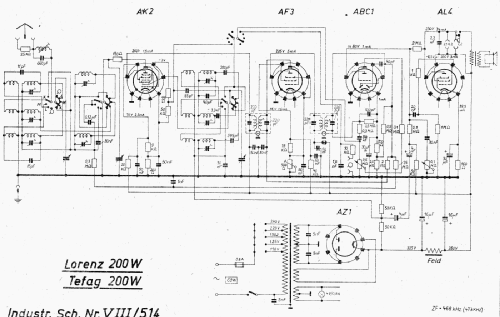

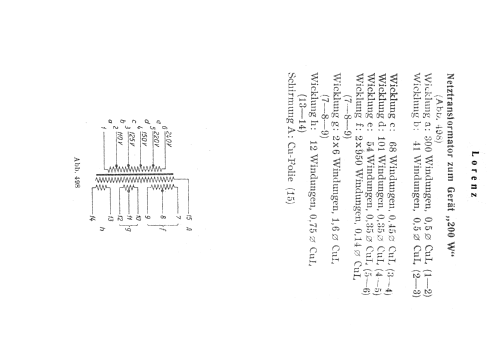

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
