Super 48A

Super 48A; Lorenz; Berlin, (ID = 66095) Radio

Super 48A; Lorenz; Berlin, (ID = 66096) Radio

Super 48A; Lorenz; Berlin, (ID = 539298) Radio
Super 48A; Lorenz; Berlin, (ID = 623393) Radio Super 48A; Lorenz; Berlin, (ID = 623394) Radio
Super 48A; Lorenz; Berlin, (ID = 61755) Radio Super 48A; Lorenz; Berlin, (ID = 99156) Radio
Super 48A; Lorenz; Berlin, (ID = 1585937) Radio Super 48A; Lorenz; Berlin, (ID = 1585938) Radio
Super 48A; Lorenz; Berlin, (ID = 1585939) Radio Super 48A; Lorenz; Berlin, (ID = 1585940) Radio
Super 48A; Lorenz; Berlin, (ID = 1585941) Radio Super 48A; Lorenz; Berlin, (ID = 1585942) Radio
Use red slider bar for more.
Super 48A; Lorenz; Berlin, (ID = 623393) Radio

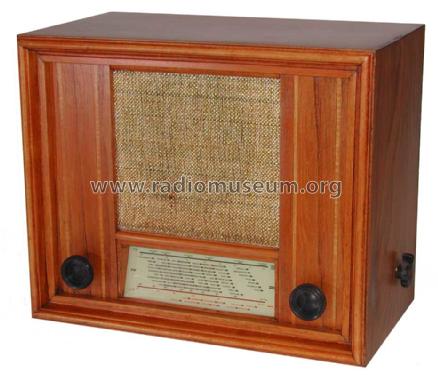

Lorenz; Berlin,: Super 48A [Radio] ID = 623393 835x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 48A, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UCH5 UCH5 UBL3
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Super 48A - Lorenz; Berlin, Zuffenhausen u
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 340 x 255 mm / 18.5 x 13.4 x 10 inch
Notes da UCH5 ab 1948=nicht 1947
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Collectors' prices
Source of data Das Rundfunk-Jahr 1948/49 / Radiokatalog Band 1, Ernst Erb
Mentioned in Funkgeschichte der GFGF (9501)


All listed radios etc. from Lorenz; Berlin, Zuffenhausen u.a.
Here you find 686 models, 541 with images and 328 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
