Weltspiegel 53K

Weltspiegel 53K; Lorenz; Berlin, (ID = 1665811) TV Radio Weltspiegel 53K; Lorenz; Berlin, (ID = 30797) TV Radio
Weltspiegel 53K; Lorenz; Berlin, (ID = 1665812) TV Radio Weltspiegel 53K; Lorenz; Berlin, (ID = 1665813) TV Radio
Weltspiegel 53K; Lorenz; Berlin, (ID = 1665814) TV Radio Weltspiegel 53K; Lorenz; Berlin, (ID = 1665815) TV Radio
Use red slider bar for more.

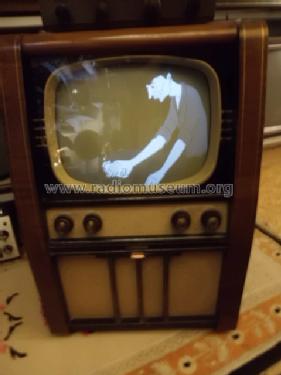

Weltspiegel 53K; Lorenz; Berlin, (ID = 1665811) TV Radio
Lorenz; Berlin,: Weltspiegel 53K [TV Radio] ID = 1665811 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltspiegel 53K, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1953/1954 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 21: PCC84 ECC81 EF80 EF80 EF80 EF80 ECC82 EL41 EF80 EF94 EAA91 PL81 EL41 PCL81 ECC82 PCL81
schematic requested
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Weltspiegel 53K - Lorenz; Berlin, Zuffenhausen u
Dimensions (WHD) 540 x 815 x 525 mm / 21.3 x 32.1 x 20.7 inch
Notes ; 3 x DS611-0; EAF15; PY83; EY51; AZ12; AZ12;
Net weight (2.2 lb = 1 kg) 74 kg / 162 lb 15.9 oz (162.996 lb)
Price in first year of sale 1'550.00 DM
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1953/54
