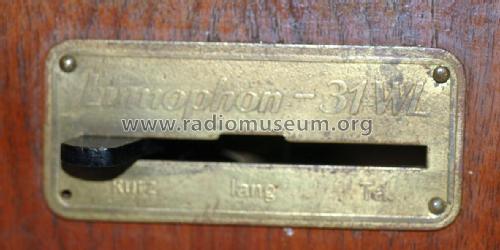

31WL ; Lumophon, Bruckner & (ID = 2259910) Radio 31WL ; Lumophon, Bruckner & (ID = 2259911) Radio
Use red slider bar for more.

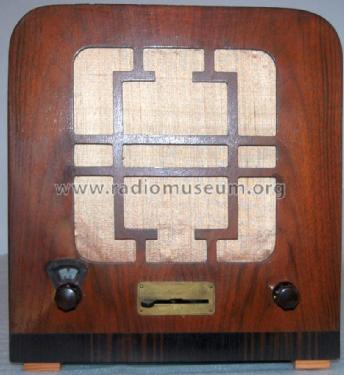

31WL ; Lumophon, Bruckner & (ID = 2259904) Radio
Lumophon, Bruckner &: 31WL [Radio] ID = 2259904 812x885
Select picture or schematic to display from thumbnails on the right and click for download.
For model 31WL (WL31), Lumophon, Bruckner & Stark, Nürnberg

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: REN1004 or RENS1204 RE134 RGN354
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Magnetic loudspeaker (reed) of high quality (4 magnet poles).
Power out
from Radiomuseum.org Model: 31WL - Lumophon, Bruckner & Stark,
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes siehe auch WL52 (52WL), laut Prohaska 1930/31 das gleiche Gerät!
Price in first year of sale 122.00 RM !
Source of data Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen
