Burggraf W BW220

Burggraf W BW220; Lumophon, Bruckner & (ID = 736467) Radio

Burggraf W BW220; Lumophon, Bruckner & (ID = 14574) Radio

Burggraf W BW220; Lumophon, Bruckner & (ID = 8951) Radio

Burggraf W BW220; Lumophon, Bruckner & (ID = 1104687) Radio

Burggraf W BW220; Lumophon, Bruckner & (ID = 1571450) Radio
Burggraf W BW220; Lumophon, Bruckner & (ID = 2543888) Radio Burggraf W BW220; Lumophon, Bruckner & (ID = 2543894) Radio
Burggraf W BW220; Lumophon, Bruckner & (ID = 2543895) Radio Burggraf W BW220; Lumophon, Bruckner & (ID = 2543887) Radio
Burggraf W BW220; Lumophon, Bruckner & (ID = 2543889) Radio Burggraf W BW220; Lumophon, Bruckner & (ID = 2543890) Radio
Burggraf W BW220; Lumophon, Bruckner & (ID = 2543891) Radio Burggraf W BW220; Lumophon, Bruckner & (ID = 2543892) Radio
Burggraf W BW220; Lumophon, Bruckner & (ID = 27936) Radio Burggraf W BW220; Lumophon, Bruckner & (ID = 27937) Radio
Use red slider bar for more.
Burggraf W BW220; Lumophon, Bruckner & (ID = 2543888) Radio
Lumophon, Bruckner &: Burggraf W BW220 [Radio] ID = 2543888 1400x1123
Select picture or schematic to display from thumbnails on the right and click for download.
For model Burggraf W BW220, Lumophon, Bruckner & Stark, Nürnberg:
D; Lumophon, Bruckner & Stark, Nürnberg; Burggraf W BW220 - 2

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1234 AB1 RES964 RGN1064
Main principle TRF with diode detector; 1 Special; 1 AF stage(s); Reflex
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Burggraf W BW220 - Lumophon, Bruckner & Stark,

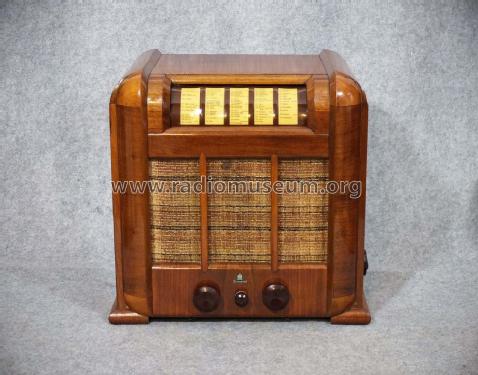

Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).

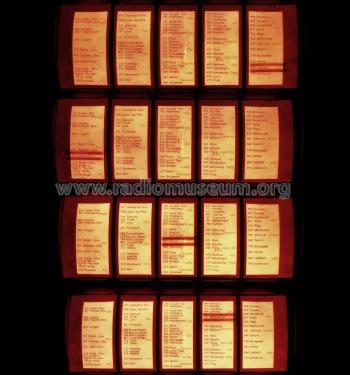

Notes Propeller- bzw. Turbinenskala.
Source of data Radiokatalog Band 1, Ernst Erb

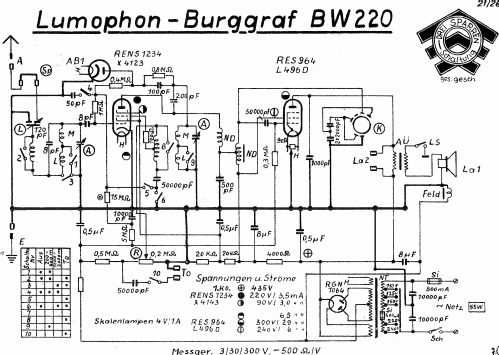

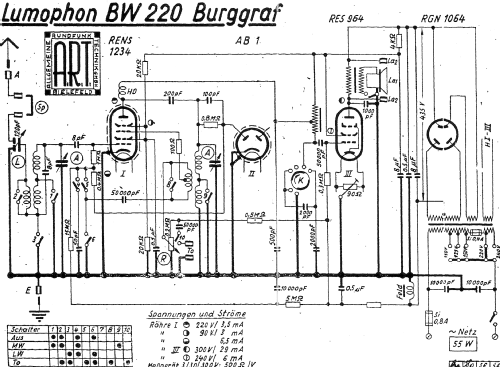

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Lumophon, Bruckner & Stark, Nürnberg
Here you find 300 models, 249 with images and 198 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
