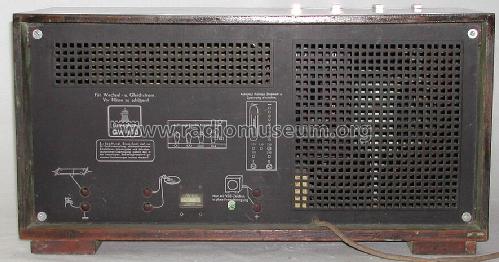

GW468; Lumophon, Bruckner & (ID = 25873) Radio GW468; Lumophon, Bruckner & (ID = 1085560) Radio
GW468; Lumophon, Bruckner & (ID = 1355504) Radio
Use red slider bar for more.
GW468; Lumophon, Bruckner & (ID = 22161) Radio
Lumophon, Bruckner &: GW468 [Radio] ID = 22161 924x587
Select picture or schematic to display from thumbnails on the right and click for download.
For model GW468, Lumophon, Bruckner & Stark, Nürnberg

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CK1 CF3 CBC1 CL4 optional AZ1
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: GW468 - Lumophon, Bruckner & Stark,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 590 x 330 x 300 mm / 23.2 x 13 x 11.8 inch
Notes variable Bandbreite.
Price in first year of sale 251.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
