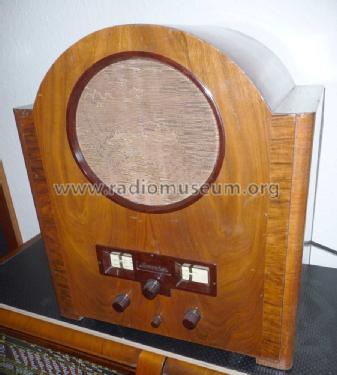

Lumophon, Bruckner &: WD76 [Radio] ID = 64570 248x298
Select picture or schematic to display from thumbnails on the right and click for download.
For model WD76, Lumophon, Bruckner & Stark, Nürnberg

Country:  Germany
Manufacturer / Brand:  Lumophon, Bruckner & Stark, Nürnberg
Brand

Lumeta
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: RENS1214 REN904 RENS1204 RENS1214 RENS1204 RES374 RGN2004
Main principle Superhet with RF-stage; ZF/IF 065 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: WD76 - Lumophon, Bruckner & Stark,
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 420 x 510 x 270 mm / 16.5 x 20.1 x 10.6 inch
Notes AVC
Price in first year of sale 225.00 RM +

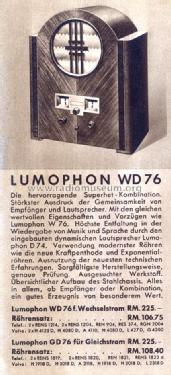

Source of data Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen
