Tenor 4192W

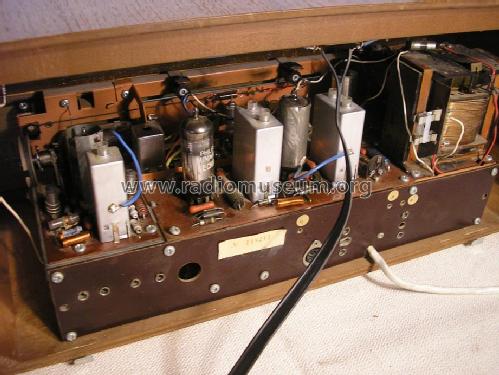

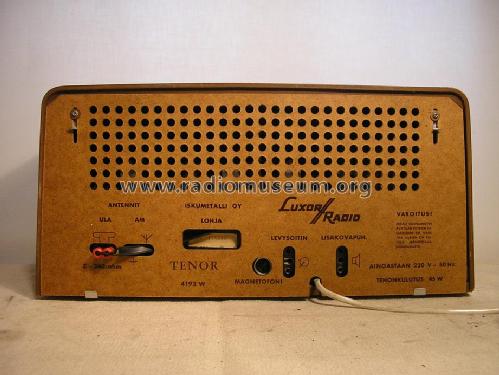

Tenor 4192W; Luxor, Helsinki - (ID = 1292961) Radio Tenor 4192W; Luxor, Helsinki - (ID = 1321996) Radio
Tenor 4192W; Luxor, Helsinki - (ID = 1321997) Radio Tenor 4192W; Luxor, Helsinki - (ID = 1321998) Radio
Tenor 4192W; Luxor, Helsinki - (ID = 1321999) Radio Tenor 4192W; Luxor, Helsinki - (ID = 1322000) Radio
Tenor 4192W; Luxor, Helsinki - (ID = 1322001) Radio
Use red slider bar for more.

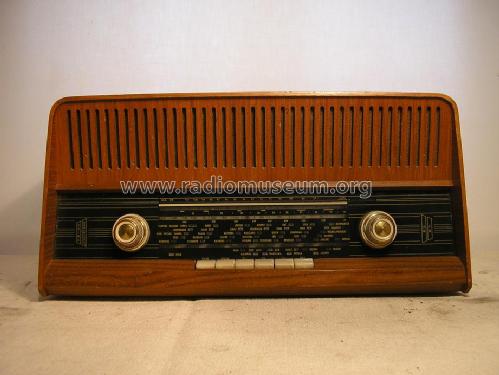

Tenor 4192W; Luxor, Helsinki - (ID = 1292961) Radio
Luxor, Helsinki -: Tenor 4192W [Radio] ID = 1292961 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tenor 4192W, Luxor, Helsinki - see also Sweden

Country:  Finland
Manufacturer / Brand:  Luxor, Helsinki - see also Sweden
alternative name

Iskumetalli Oy
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF89 ECC82 EM84 EL84
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Tenor 4192W - Luxor, Helsinki - see also
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 435 x 210 x 205 mm / 17.1 x 8.3 x 8.1 inch
Notes See also the Swedish model Tenor 4192W.

Model page created by Timo Rantasaari. See "Data change" for further contributors.
