A24

A24; Magnadyne Radio; (ID = 606767) Radio

A24; Magnadyne Radio; (ID = 2465758) Radio
A24; Magnadyne Radio; (ID = 246384) Radio A24; Magnadyne Radio; (ID = 246385) Radio
Use red slider bar for more.
A24; Magnadyne Radio; (ID = 246384) Radio
Magnadyne Radio;: A24 [Radio] ID = 246384 900x645
Select picture or schematic to display from thumbnails on the right and click for download.
For model A24, Magnadyne Radio; Torino:
Da restaurare. Not yet restored.

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1953 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6AJ8 12P1 12AT6 35F4 EM80 50R4
Main principle Superheterodyne (common)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: A24 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 310 x 225 mm / 19.7 x 12.2 x 8.9 inch
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Source of data - - Data from my own collection

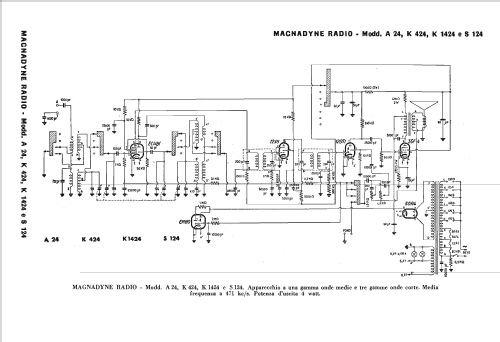

Mentioned in -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)

Model page created by Paolo De Pasqual. See "Data change" for further contributors.
