A9

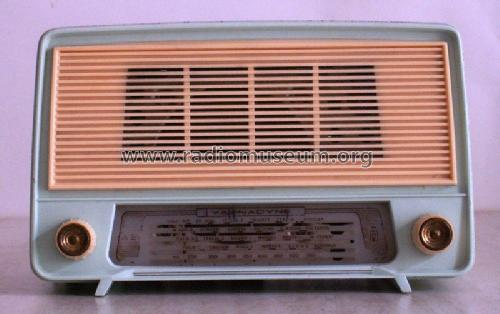

A9; Magnadyne Radio; (ID = 490085) Radio A9; Magnadyne Radio; (ID = 490087) Radio

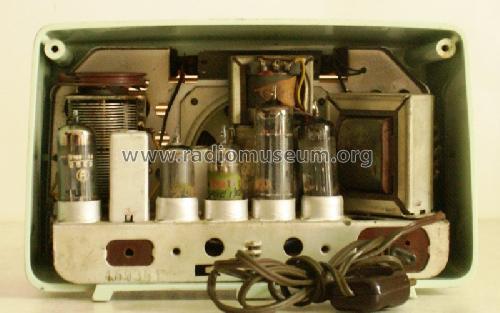

A9; Magnadyne Radio; (ID = 1004777) Radio A9; Magnadyne Radio; (ID = 1004778) Radio

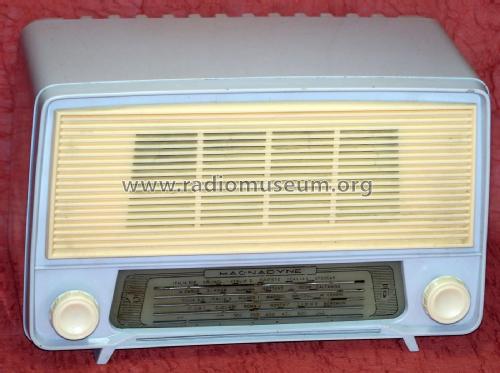

A9; Magnadyne Radio; (ID = 1004779) Radio A9; Magnadyne Radio; (ID = 2158592) Radio
Use red slider bar for more.
A9; Magnadyne Radio; (ID = 490085) Radio
Magnadyne Radio;: A9 [Radio] ID = 490085 700x497
Select picture or schematic to display from thumbnails on the right and click for download.
For model A9, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 25E2 12P1 12AV6 35F6 35W4
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 120-230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: A9 - Magnadyne Radio; Torino
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 225 x 140 x 120 mm / 8.9 x 5.5 x 4.7 inch
Price in first year of sale 16'750.00 ITL
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in -- Original prospect or advert

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Magnadyne Radio; Torino
Here you find 333 models, 250 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
