E260

E260; Magnadyne Radio; (ID = 668735) Radio

E260; Magnadyne Radio; (ID = 668736) Radio
Use red slider bar for more.
E260; Magnadyne Radio; (ID = 668735) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 12P1 12DT1 50F2 EM80 35R2
Main principle Superheterodyne (common); ZF/IF 471 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 175; 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: E260 - Magnadyne Radio; Torino
Notes Apparecchio ad onde medie e corte. Probabilmente commercializzato con altro marchio.

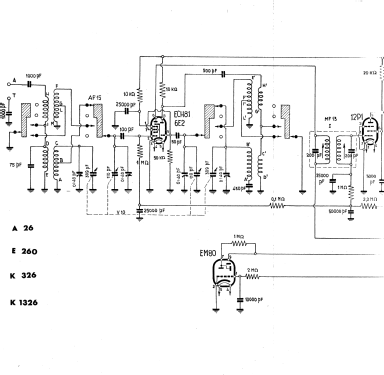

Literature/Schematics (1) -- Schematic (D.E.Ravalico, Il Radio Libro, 17° Edizione, 1960, Hoepli)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.



All listed radios etc. from Magnadyne Radio; Torino
Here you find 333 models, 250 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
