FM16

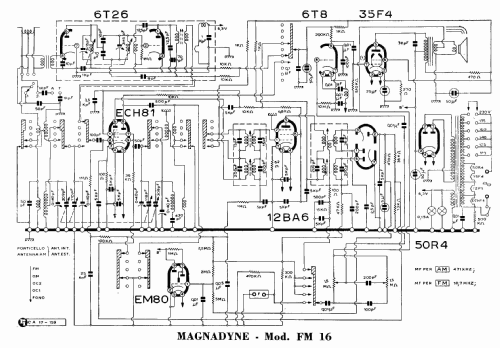

FM16; Magnadyne Radio; (ID = 1033509) Radio
FM16; Magnadyne Radio; (ID = 1926882) Radio FM16; Magnadyne Radio; (ID = 1926883) Radio

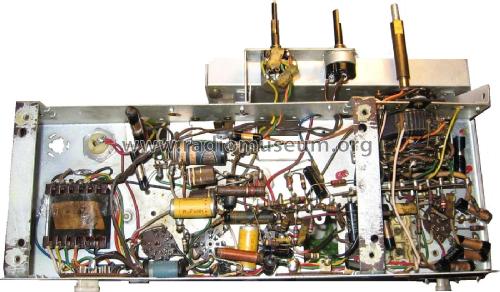

FM16; Magnadyne Radio; (ID = 2425150) Radio FM16; Magnadyne Radio; (ID = 2425679) Radio
FM16; Magnadyne Radio; (ID = 2425680) Radio FM16; Magnadyne Radio; (ID = 2426741) Radio
FM16; Magnadyne Radio; (ID = 2426742) Radio
Use red slider bar for more.
FM16; Magnadyne Radio; (ID = 1926882) Radio
Magnadyne Radio;: FM16 [Radio] ID = 1926882 782x428
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM16, Magnadyne Radio; Torino:
E-bay seller.

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1954 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6T26 6T8 35F4 ECH81 EM80 12BA6 50R4
Main principle Superheterodyne (common); ZF/IF 471/10700 kHz
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 175; 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FM16 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Magnadyne Radio; Torino
Here you find 333 models, 250 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
