FM23

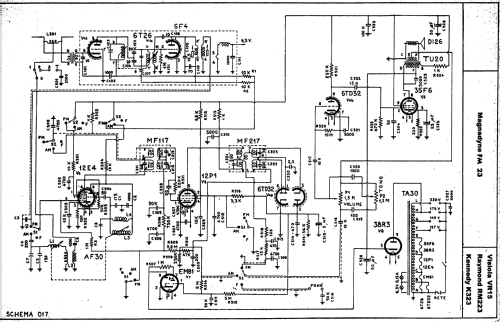

FM23; Magnadyne Radio; (ID = 520671) Radio
FM23; Magnadyne Radio; (ID = 2417757) Radio FM23; Magnadyne Radio; (ID = 2417758) Radio

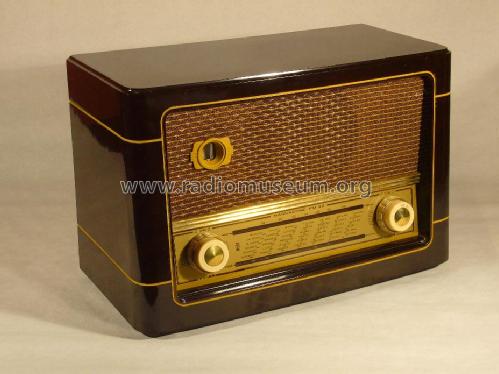

FM23; Magnadyne Radio; (ID = 561777) Radio FM23; Magnadyne Radio; (ID = 561952) Radio

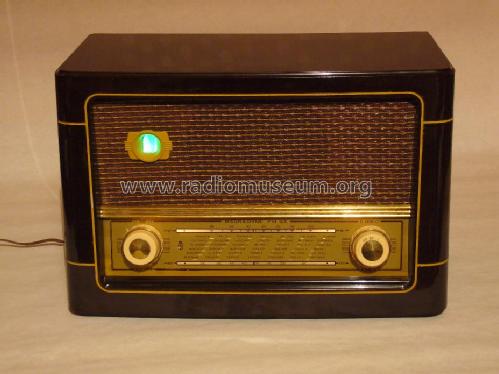

FM23; Magnadyne Radio; (ID = 562359) Radio FM23; Magnadyne Radio; (ID = 562624) Radio

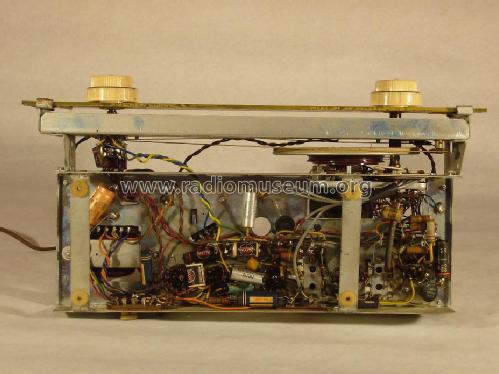

FM23; Magnadyne Radio; (ID = 564490) Radio FM23; Magnadyne Radio; (ID = 565700) Radio
Use red slider bar for more.
FM23; Magnadyne Radio; (ID = 2417757) Radio
Magnadyne Radio;: FM23 [Radio] ID = 2417757 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM23, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6T26 12E4 12P1 6TD32 EM81 35F6 38R3
Main principle Superheterodyne (common); ZF/IF 471/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FM23 - Magnadyne Radio; Torino
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 410 x 270 x 210 mm / 16.1 x 10.6 x 8.3 inch
Notes Serie ANIE MF. È una variante del modello FM 223 della RAYMOND.
Price in first year of sale 27'750.00 ITL
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in -- Original prospect or advert

Model page created by Alessandro De Poi. See "Data change" for further contributors.
