FM32

FM32; Magnadyne Radio; (ID = 428209) Radio
FM32; Magnadyne Radio; (ID = 580879) Radio FM32; Magnadyne Radio; (ID = 581090) Radio
FM32; Magnadyne Radio; (ID = 581091) Radio FM32; Magnadyne Radio; (ID = 581089) Radio

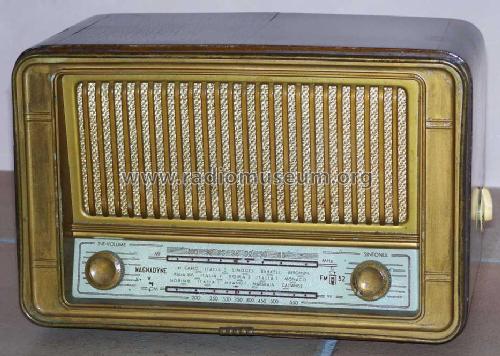

FM32; Magnadyne Radio; (ID = 1266300) Radio
Use red slider bar for more.
FM32; Magnadyne Radio; (ID = 580879) Radio
Magnadyne Radio;: FM32 [Radio] ID = 580879 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM32, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6T26 25E2 12P1 6TD32 35F6 50R4
Main principle Superheterodyne (common); ZF/IF 471/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 127; 140; 175; 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: FM32 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

ATTENZIONE AUTOTRASFORMATORE !

Autotrasformatore tipo TA23.
Trasformatore di uscita tipo TU20.
Altoparlante ellittico tipo DI24.

Price in first year of sale 29'000.00 LIT
Source of data -- Original prospect or advert

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Magnadyne Radio; Torino
Here you find 333 models, 250 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
