FM3

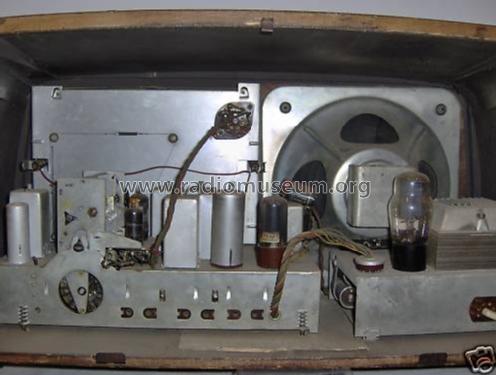

FM3; Magnadyne Radio; (ID = 697969) Radio FM3; Magnadyne Radio; (ID = 697975) Radio

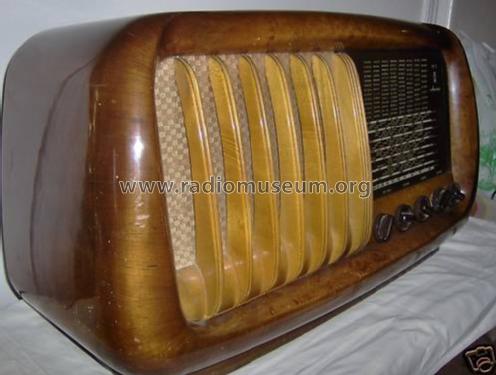

FM3; Magnadyne Radio; (ID = 697977) Radio FM3; Magnadyne Radio; (ID = 697972) Radio
FM3; Magnadyne Radio; (ID = 697976) Radio FM3; Magnadyne Radio; (ID = 697979) Radio
Use red slider bar for more.
FM3; Magnadyne Radio; (ID = 697969) Radio
Magnadyne Radio;: FM3 [Radio] ID = 697969 500x378
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM3, Magnadyne Radio; Torino:
cortesia dell'utente ebay buccino56

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1950/1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6BA7 6J6 EF42 EF42 6E5 6SQ7 EQ80 6V6 5Y3GR
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FM3 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 650 x 360 x 250 mm / 25.6 x 14.2 x 9.8 inch
Notes

8 gamme d'onda.

Sebbene Guida Pratica Antique Radio II indichi anni 1949-1950, qui inseriamo anno d'inizio produzione 1950 in quanto la valvola EQ80 risulta introdotta in tale anno.

Price in first year of sale 85'000.00 ITL
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in -- Original prospect or advert

Model page created by Alessandro De Poi. See "Data change" for further contributors.
