FM10

FM10; Magnadyne Radio; (ID = 1129133) Radio
FM10; Magnadyne Radio; (ID = 1109470) Radio FM10; Magnadyne Radio; (ID = 1109471) Radio

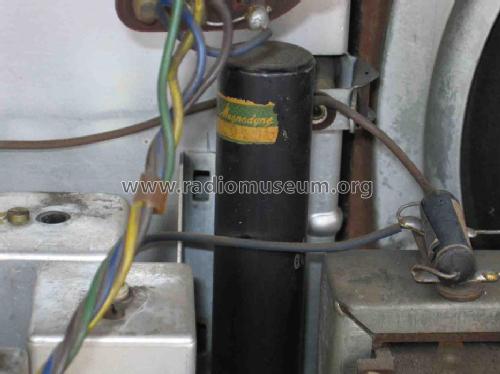

FM10; Magnadyne Radio; (ID = 1109472) Radio FM10; Magnadyne Radio; (ID = 1109473) Radio

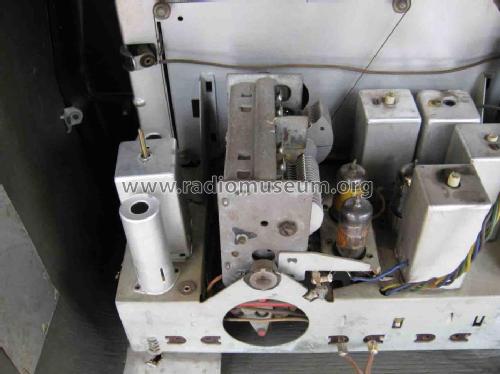

FM10; Magnadyne Radio; (ID = 1109474) Radio FM10; Magnadyne Radio; (ID = 1109475) Radio
Use red slider bar for more.
FM10; Magnadyne Radio; (ID = 1109470) Radio
Magnadyne Radio;: FM10 [Radio] ID = 1109470 933x614
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM10, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1955 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6BE6 6J6 EF42 6AU6 EM34 6T8 EL41 EL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 469/10700 kHz
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 175; 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 8 W (unknown quality)
from Radiomuseum.org Model: FM10 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Mentioned in -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)

Model page created by Mauro Gallo. See "Data change" for further contributors.
