FM40

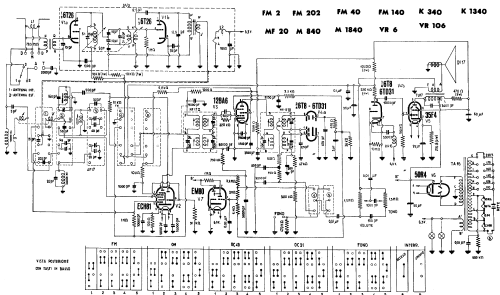

FM40; Magnadyne Radio; (ID = 381048) Radio
FM40; Magnadyne Radio; (ID = 509051) Radio FM40; Magnadyne Radio; (ID = 381021) Radio
FM40; Magnadyne Radio; (ID = 381020) Radio FM40; Magnadyne Radio; (ID = 381019) Radio
FM40; Magnadyne Radio; (ID = 400926) Radio FM40; Magnadyne Radio; (ID = 1344380) Radio
FM40; Magnadyne Radio; (ID = 1344382) Radio FM40; Magnadyne Radio; (ID = 1553774) Radio
Use red slider bar for more.
FM40; Magnadyne Radio; (ID = 509051) Radio
Magnadyne Radio;: FM40 [Radio] ID = 509051 933x633
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM40, Magnadyne Radio; Torino:
Magnadyne FM40. Restauro .depoi.net

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1956–1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6T26 ECH81 12BA6 or 12P1 6T8 or 6TD31 EM80 35F4 50R4
Main principle Superheterodyne (common); ZF/IF 471/10700 kHz
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: FM40 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 510 x 320 x 230 mm / 20.1 x 12.6 x 9.1 inch
Notes Serie ANIE MF.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 42'000.00 ITL
Source of data Guida Pratica Antique Radio IV (2001)
Mentioned in Guida Pratica Antique Radio IV (2001) (1956-57)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Magnadyne Radio; Torino
Here you find 333 models, 250 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
