• Country
• Italy

• Manufacturer / Brand
• Magnadyne Radio; Torino

• Year
• 1959 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 155312

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6T26 12E4 50RP1 6TD32 EM81 9TP4 58TF1

• Number of Transistors

• Semiconductors
• E62,5C5

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 175; 230 Volt

• Loudspeaker

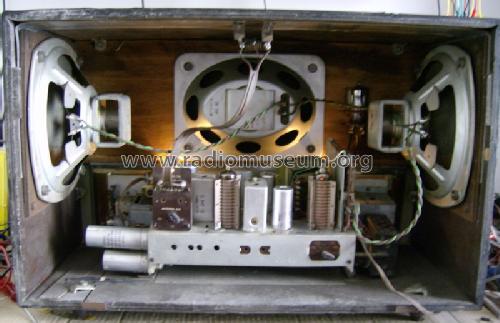

• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: MD6031 - Magnadyne Radio; Torino

• Shape
• Tablemodel with Push Buttons.

• Notes

• Sintonia a induttori variabili. Ingresso fono con possibilità di cambio registro per dischi 78 giri o microsolco.
  Controllo di tono a 5 posizioni: Orchestra, Vario, Jazz, Parola, Normale.
  Onde corte 49 e 31 metri.

• Mentioned in
• -- Schematic (Scuola Radio Elettra, Corso Radio Stereo, 1964/65 Schemario/Abaco)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
