- Country
- Italy
- Manufacturer / Brand
- Magnadyne Radio; Torino
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 108780
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org

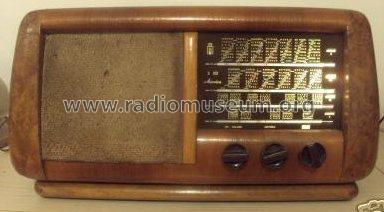

- Model: S103 - Magnadyne Radio; Torino
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 505 x 275 x 200 mm / 19.9 x 10.8 x 7.9 inch
- Notes
- Stesso schema Magnadyne S102. Gamme d'onda: 2 medie e 2 corte.
Wave bands: 2× BC, 2× SW.
- Source of data
- Guida Pratica Antique Radio IV (2001)
