For model S12, Magnadyne Radio; Torino:
Thanks for Mr.János Romhányi, Hungary, Tápióság and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation (radio-muzeum.hu).

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1950–1952 Category: Broadcast Receiver - or past WW2 Tuner

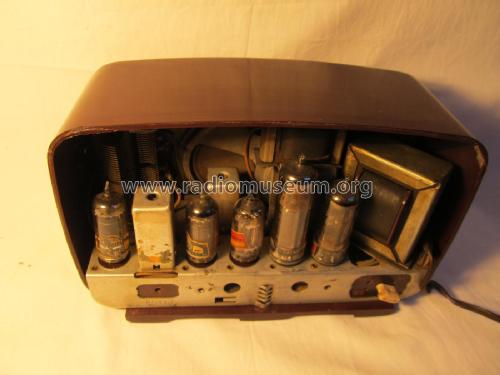

Valves / Tubes 5: 12AT6 12BA6 12BE6 UL41 UY41
Main principle Superheterodyne (common); 1 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: S12 - Magnadyne Radio; Torino
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 220 x 130 x 95 mm / 8.7 x 5.1 x 3.7 inch
Notes Serie ANIE. Chassis 21320
External source of data Volker Jeschkeit
Source of data Guida Pratica Antique Radio V (2003)

Model page created by Volker Jeschkeit. See "Data change" for further contributors.
