S33 Verticale

S33; Magnadyne Radio; (ID = 36635) Radio

S33; Magnadyne Radio; (ID = 84422) Radio

S33; Magnadyne Radio; (ID = 210162) Radio

S33; Magnadyne Radio; (ID = 2570178) Radio
S33; Magnadyne Radio; (ID = 2165606) Radio S33; Magnadyne Radio; (ID = 2165605) Radio
S33; Magnadyne Radio; (ID = 2165608) Radio S33; Magnadyne Radio; (ID = 2165609) Radio
S33; Magnadyne Radio; (ID = 2165607) Radio S33; Magnadyne Radio; (ID = 2106573) Radio
S33; Magnadyne Radio; (ID = 425751) Radio S33; Magnadyne Radio; (ID = 425752) Radio
S33; Magnadyne Radio; (ID = 425753) Radio S33; Magnadyne Radio; (ID = 82255) Radio
Use red slider bar for more.
S33; Magnadyne Radio; (ID = 2165606) Radio

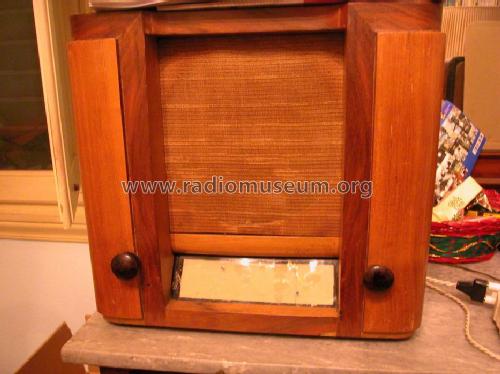

Magnadyne Radio;: S33 [Radio] ID = 2165606 1296x972
Select picture or schematic to display from thumbnails on the right and click for download.
For model S33 Verticale, Magnadyne Radio; Torino:
Pagata 50 euro, rimessa a posto e lucidata a gommalacca, cambiati i condensatori.

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1937–1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6A7 6B7 42 80
Main principle Superheterodyne (common); ZF/IF 362 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 155; 175; 230 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: S33 [Verticale] - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 355 x 340 x 255 mm / 14 x 13.4 x 10 inch
Price in first year of sale 650.00 ITL
Source of data Guida Pratica Antique Radio V (2003)
Mentioned in A. Battocchio, La bella radio, Mosè Edizioni
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
Literature/Schematics (2) Catalogo Magnadyne 1937

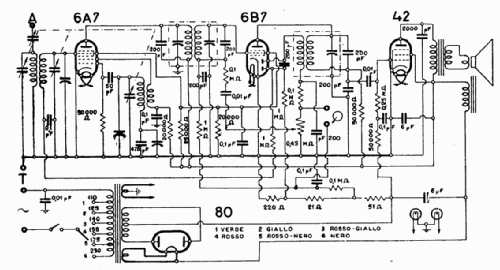

Literature/Schematics (3) -- Schematic (La Riparazione degli Apparecchi Radio, Delforno - Colciago, Italy 1941)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Magnadyne Radio; Torino
Here you find 336 models, 251 with images and 240 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
