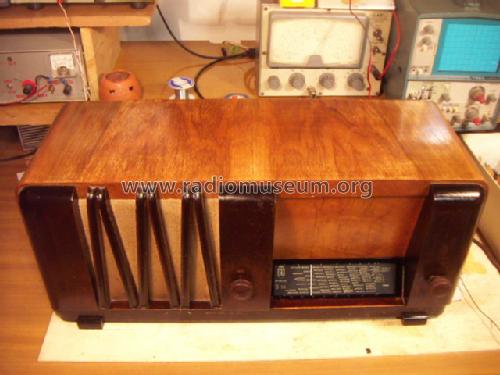

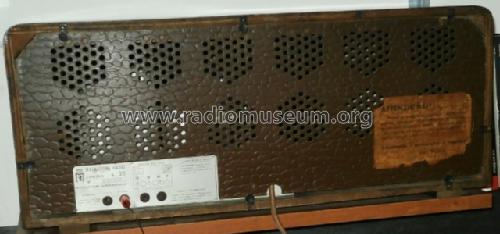

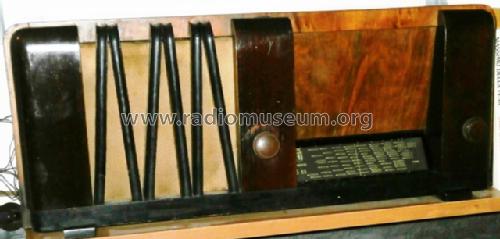

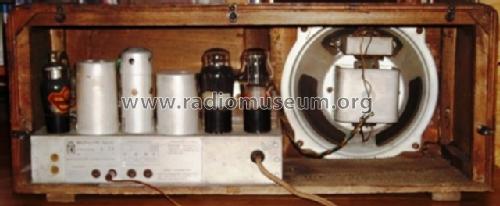

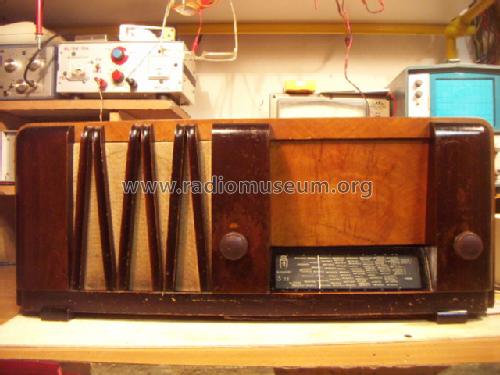

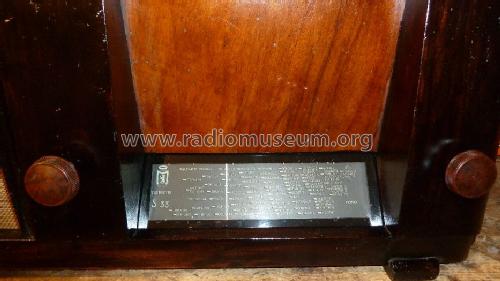

S33 Orizzontale

S33; Magnadyne Radio; (ID = 247474) Radio

S33; Magnadyne Radio; (ID = 2570179) Radio
S33; Magnadyne Radio; (ID = 244291) Radio S33; Magnadyne Radio; (ID = 244292) Radio
S33; Magnadyne Radio; (ID = 1109247) Radio S33; Magnadyne Radio; (ID = 1109248) Radio
S33; Magnadyne Radio; (ID = 1109249) Radio S33; Magnadyne Radio; (ID = 1109250) Radio
S33; Magnadyne Radio; (ID = 1109254) Radio S33; Magnadyne Radio; (ID = 1134200) Radio
S33; Magnadyne Radio; (ID = 1134201) Radio S33; Magnadyne Radio; (ID = 1134202) Radio
Use red slider bar for more.
S33; Magnadyne Radio; (ID = 244291) Radio

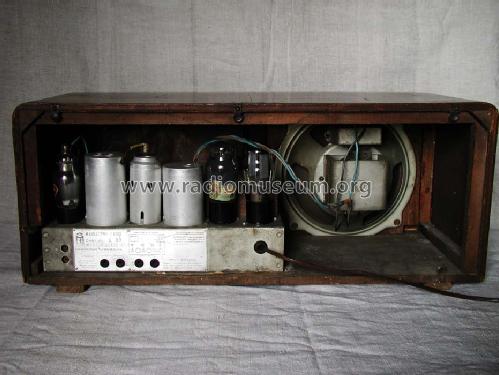

Magnadyne Radio;: S33 [Radio] ID = 244291 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model S33 Orizzontale, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6A7 6B7 42 or 6V6 80
Main principle Superheterodyne (common); ZF/IF 362 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 155; 175; 230 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: S33 [Orizzontale] - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 580 x 240 x 240 mm / 22.8 x 9.4 x 9.4 inch
Notes Variante con mobile ad andamento orizzontale.
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in A. Battocchio, La bella radio, Mosè Edizioni

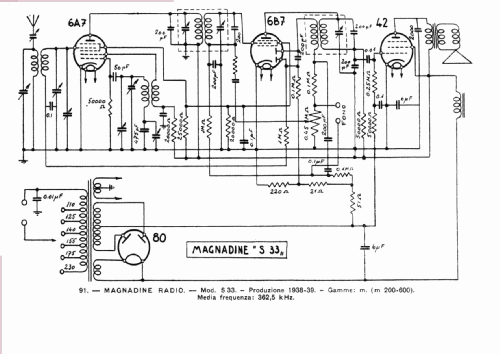

Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

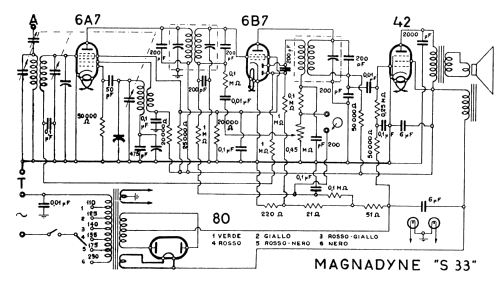

Literature/Schematics (2) -- Schematic (La Riparazione degli Apparecchi Radio, Delforno - Colciago, Italy 1941)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
