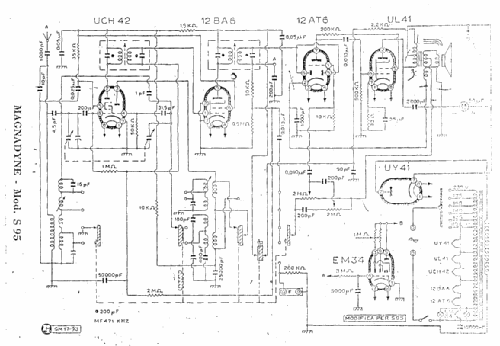

Select picture or schematic to display from thumbnails on the right and click for download.
For model S95, Magnadyne Radio; Torino:

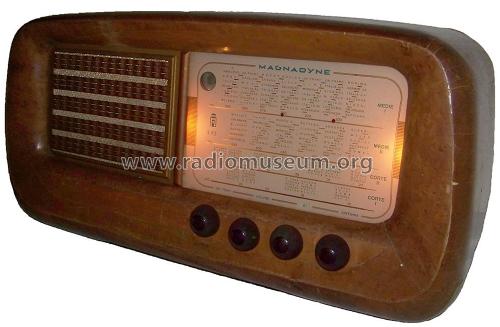

Vista principale Magnadyne S95

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 12BA6 12AT6 UL41 EM34 UY41
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: S95 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 310 x 220 mm / 23.6 x 12.2 x 8.7 inch
Notes Gamme d'onda: 2 medie e 2 corte.
Wave bands: 2x BC, 2x SW.
Mentioned in -- Collector info (Sammler)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
