- Country
- Italy
- Manufacturer / Brand
- Magnadyne Radio; Torino
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 90470

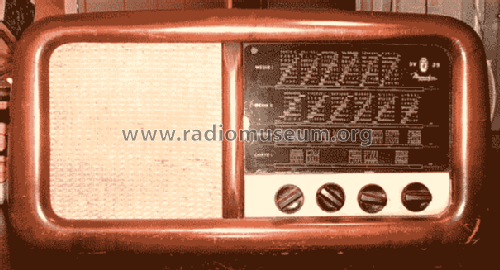

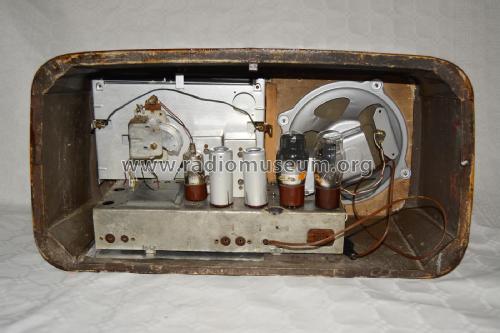

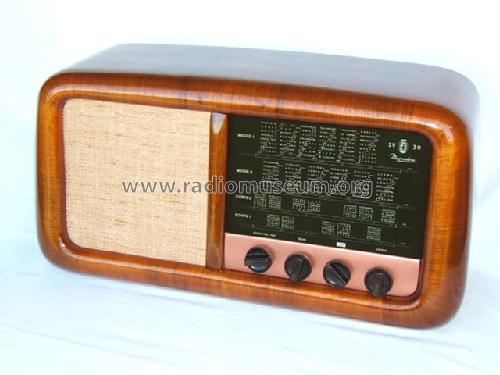

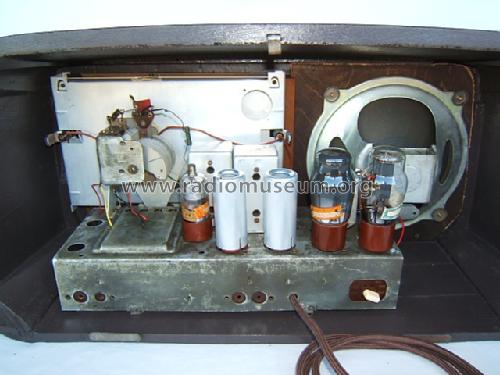

Photo by courtesy of M.Pisicchio

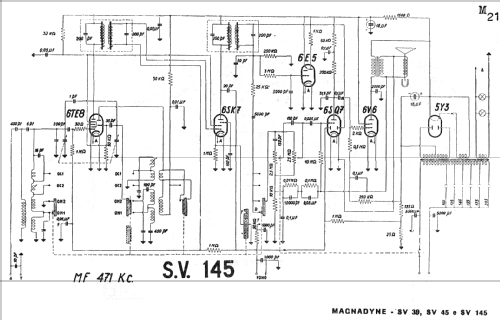

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 471 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 155; 175; 235 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: SV39 - Magnadyne Radio; Torino
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 550 x 300 x 200 mm / 21.7 x 11.8 x 7.9 inch
- Notes
-
Stesso chassis del Magnadyne SV45, ma senza occhio magico. Gamme d'onda: 2× OM, 2× OC.
Controllo di tono. Ingresso per giradischi.
Wave bands: 2× MW, 2× SW.
- Source of data
- Collezione di Schemi, Scuola Radio Elettra 1953
- Mentioned in
- Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 129)
- Literature/Schematics (1)
- Riparazioni - Scuola Radio Elettra (pag. M21)
- Literature/Schematics (2)
- Il Radio Libro (E.D. Ravalico) Edizioni Hoepli (12a edizione, 1953)
