SV49

SV49; Magnadyne Radio; (ID = 256573) Radio
SV49; Magnadyne Radio; (ID = 1304724) Radio SV49; Magnadyne Radio; (ID = 1304726) Radio

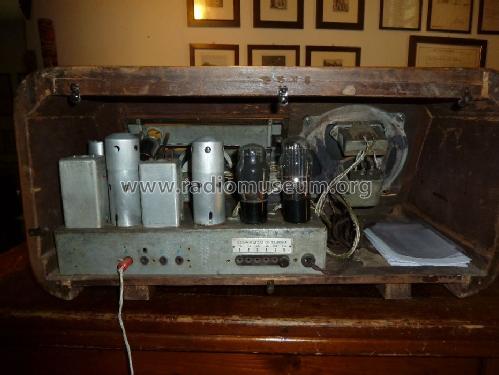

SV49; Magnadyne Radio; (ID = 1304727) Radio SV49; Magnadyne Radio; (ID = 1304728) Radio
SV49; Magnadyne Radio; (ID = 1304730) Radio SV49; Magnadyne Radio; (ID = 1307465) Radio
Use red slider bar for more.
SV49; Magnadyne Radio; (ID = 1304724) Radio
Magnadyne Radio;: SV49 [Radio] ID = 1304724 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model SV49, Magnadyne Radio; Torino

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6K7G 6Q7G 6V6G 80
Main principle Superheterodyne (common); ZF/IF 471,5 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 155; 175; 230 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: SV49 - Magnadyne Radio; Torino
Dimensions (WHD) 590 x 290 x 310 mm / 23.2 x 11.4 x 12.2 inch
Notes Gamme d'onda = 2x OM, 2x OC. Stesso chassis Magnadyne SV63 e SV61. Serie Transcontinentale.
Wave bands: 2x BC, 2x SW.
Price in first year of sale 1'975.00 ITL
Literature/Schematics (1) Il Radio Libro, (Ravalico) 8.Ed.

Model page created by Alessandro De Poi. See "Data change" for further contributors.
