SV63 6 valvole

SV63; Magnadyne Radio; (ID = 250298) Radio
SV63; Magnadyne Radio; (ID = 244345) Radio SV63; Magnadyne Radio; (ID = 244346) Radio

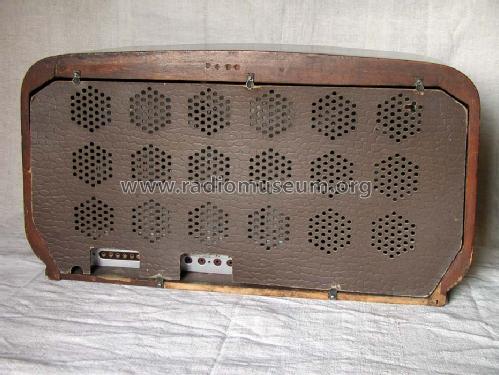

SV63; Magnadyne Radio; (ID = 244347) Radio SV63; Magnadyne Radio; (ID = 244348) Radio
SV63; Magnadyne Radio; (ID = 1401988) Radio SV63; Magnadyne Radio; (ID = 1608533) Radio
SV63; Magnadyne Radio; (ID = 2626125) Radio
Use red slider bar for more.
SV63; Magnadyne Radio; (ID = 244345) Radio
Magnadyne Radio;: SV63 [Radio] ID = 244345 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model SV63 6 valvole, Magnadyne Radio; Torino:
Manopole non originali. Knobs not original.
Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A8 6K7 6Q7 6V6 EM4 80
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 155; 175; 230 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Model: SV63 [6 valvole] - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 645 x 350 x 265 mm / 25.4 x 13.8 x 10.4 inch

2× OM, 2× OC. Serie Transcontinentale.

Esiste anche variante senza occhio magico.

Lo stesso modello utilizzava anche la 6E5.

Mentioned in Guida Pratica Antique Radio II (2000)
Literature/Schematics (1) Il Radio Libro, (Ravalico) 8.Ed.
Literature/Schematics (2) -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945)

Model page created by Paolo De Pasqual. See "Data change" for further contributors.
