SV61

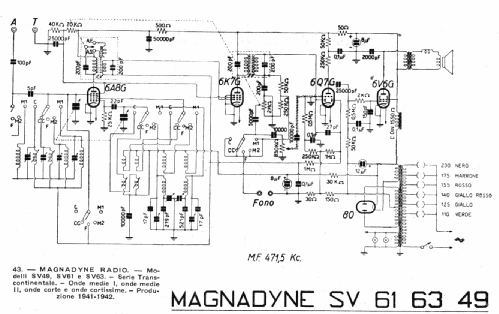

SV61; Magnadyne Radio; (ID = 256571) Radio
SV61; Magnadyne Radio; (ID = 1401987) Radio
Use red slider bar for more.
SV61; Magnadyne Radio; (ID = 1401987) Radio
Magnadyne Radio;: SV61 [Radio] ID = 1401987 513x414
Select picture or schematic to display from thumbnails on the right and click for download.
For model SV61, Magnadyne Radio; Torino:
Collezione Monografica di Radiotecnica (CMR 10)

Country:  Italy
Manufacturer / Brand:  Magnadyne Radio; Torino
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6K7G 6Q7G 6V6G 80
Main principle Superheterodyne (common); ZF/IF 471,5 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 155; 175; 230 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: SV61 - Magnadyne Radio; Torino
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes Gamme d'onda = 2x OM, 2x OC. Stesso chassis Magnadyne SV63 e SV49. Serie Transcontinentale.
Wave bands: 2x BC, 2x SW.
Literature/Schematics (1) Il Radio Libro, (Ravalico) 8.Ed.

Model page created by Alessandro De Poi. See "Data change" for further contributors.
