• Country
• Italy

• Manufacturer / Brand
• Magnafon; Desio (MB)

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 190831

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

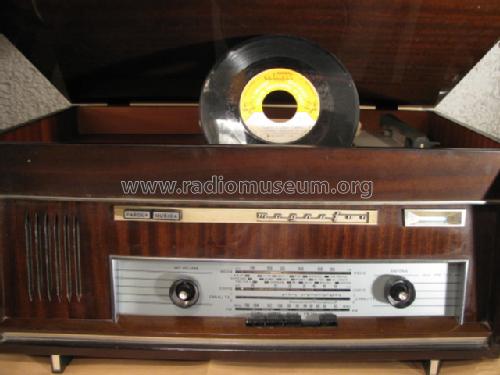

• Model: FM122 - Magnafon; Desio MB

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 280 x 320 mm / 22.8 x 11 x 12.6 inch

• Source of data
• - - Data from my own collection

• Author
• Model page created by Sergio Bracchi. See "Data change" for further contributors.

• Other Models

• Here you find 35 models, 29 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
