396A
Use red slider bar for more.

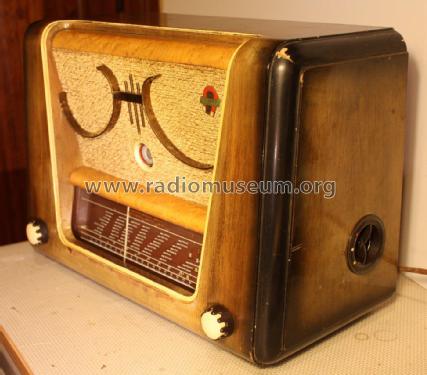

Magnétic, Société G.: 396A [Radio] ID = 1858037 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1950 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: ECH42 EAF42 EBC41 EL41 EM4 AZ41 |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 115; 130; 145; 220; 240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch |
| Power out | |
| from Radiomuseum.org | Model: 396A - Magnétic, Société G.S.L.; |
| Material | Wooden case |
| Shape | Tablemodel, with any shape - general. |
| Dimensions (WHD) | 460 x 315 x 220 mm / 18.1 x 12.4 x 8.7 inch |
| Notes | A l'arrière une prise femelle trois contacts avec HT et Fil destinée à alimenter un cadre anti-parasite. Voir aussi le modèle Isis 396A. |
| Net weight (2.2 lb = 1 kg) | 8.1 kg / 17 lb 13.5 oz (17.841 lb) |
Model page created by Georges Werts. See "Data change" for further contributors.
