601 lampes "A"

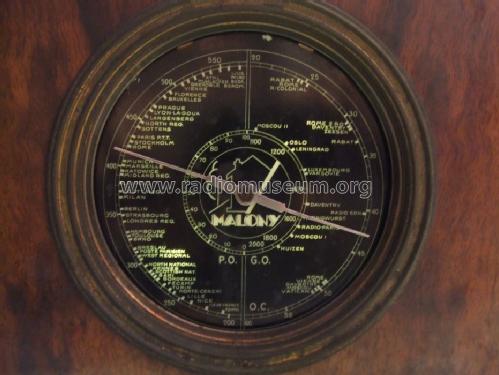

601; Malony-Radio, P.R.; (ID = 1380237) Radio 601; Malony-Radio, P.R.; (ID = 1380238) Radio

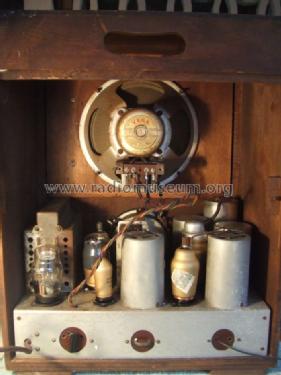

601; Malony-Radio, P.R.; (ID = 1380240) Radio 601; Malony-Radio, P.R.; (ID = 1380242) Radio

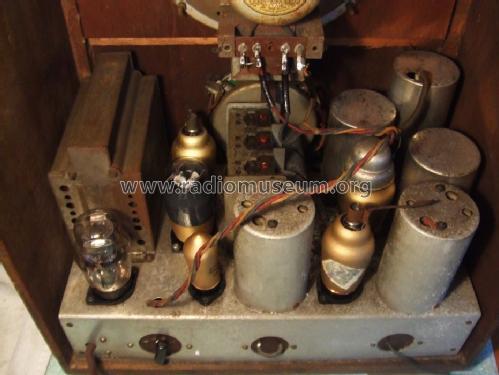

601; Malony-Radio, P.R.; (ID = 1380243) Radio 601; Malony-Radio, P.R.; (ID = 1380244) Radio

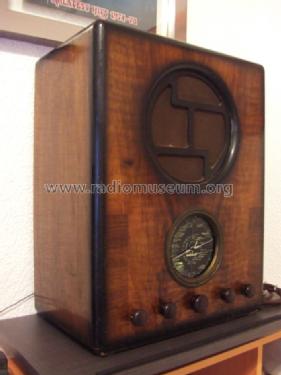

601; Malony-Radio, P.R.; (ID = 1380246) Radio
Use red slider bar for more.

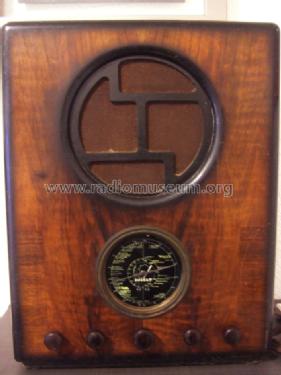

601; Malony-Radio, P.R.; (ID = 1380237) Radio
Malony-Radio, P.R.;: 601 [Radio] ID = 1380237 700x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model 601 lampes "A", Malony-Radio, P.R.; Nice, Marseille, Paris

Country:  France
Manufacturer / Brand:  Malony-Radio, P.R.; Nice, Marseille, Paris
Year: 1935/1936 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK2 AF7 AB2 AF7 AL3 AZ1
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 601 [lampes "A"] - Malony-Radio, P.R.; Nice,
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 375 x 485 x 235 mm / 14.8 x 19.1 x 9.3 inch
Notes

3 gammes d'ondes de 20 à 2000 m. Antifading. Circuit présélecteur. Contrôle de sensibilité et de tonalité.
EE: Most probably the model was originally fitted with an AL3 and not an AL4, which was later used in schematics because the AL3 was obsolete. Otherwise the model date 1935/36 is not true, since the AL4 was available only since 1936.

Price in first year of sale 1'350.00 FRF
Literature/Schematics (1) -- Original prospect or advert (L'Est Républicain, 15.09.1935)

Model page created by Carlos Sempere-Carrión. See "Data change" for further contributors.



All listed radios etc. from Malony-Radio, P.R.; Nice, Marseille, Paris
Here you find 33 models, 15 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
