Stereo Console Model 7

Stereo Console Model 7; Marantz Sound United (ID = 2429658) Ampl/Mixer Stereo Console Model 7; Marantz Sound United (ID = 2429659) Ampl/Mixer
Stereo Console Model 7; Marantz Sound United (ID = 2429660) Ampl/Mixer Stereo Console Model 7; Marantz Sound United (ID = 2429661) Ampl/Mixer
Stereo Console Model 7; Marantz Sound United (ID = 2429662) Ampl/Mixer Stereo Console Model 7; Marantz Sound United (ID = 2429663) Ampl/Mixer
Stereo Console Model 7; Marantz Sound United (ID = 2429664) Ampl/Mixer
Use red slider bar for more.
Stereo Console Model 7; Marantz Sound United (ID = 2429658) Ampl/Mixer
Marantz Sound United: Stereo Console Model 7 [Ampl/Mixer] ID = 2429658 1100x470
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Console Model 7, Marantz (Sound United LLC); Vista, CA:
Ebay.es auction item_143357816148 seller 5020vander

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1966 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 6: ECC83 or 12AX7 ECC83 or 12AX7 ECC83 or 12AX7 ECC83 or 12AX7 ECC83 or 12AX7 ECC83 or 12AX7
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Console Model 7 - Marantz Sound United LLC;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 14.375 x 5.375 x 8.5 inch / 365 x 137 x 216 mm
Notes

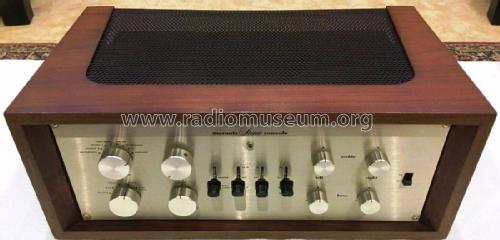

A stereo hi-fi valve preamplifier housed in a metal case, a mahogany, walnut or blond wooden outer cabinet available for an extra $24. 8 position selector for Microphone, Phono 1, Phono 2, Tape-Head, FM-AM, FM (Multiplexed), TV and Aux. 5 position Mode switch for Stereo, Stereo Reverse, Channel A, Channel B and Channel A+B (last 3 are mono positions and will be heard from both speakers). Controls for Volume, Balance, Left and Right Bass and Treble, High Filter, Rumble Filter, Record Equalizer and Tape Playback/Monitor. On the rear, Output Level-Sets, Tape-Head Equalizer Adjustments, 9 pairs of Inputs, 3 pairs Outputs, 6 AC Outlets and System Grounding Point.

General Data
Gain
  Phono and Tape Head 64.5dB
  Microphone                62dB
  High Level                  22.5dB
At Recording Output
  Phono and Tape Head 42dB,
  Microphone                40dB,
  High Level Unity          (0dB)
Frequency Response   20Hz - 20kHz within 0.5dB
Total Noise                  80dB below 10mv phono input with RIAA curve (20Hz-20kHz)
                                  Hum is far below thermal noise



Price in first year of sale 249.00 $
Mentioned in - - Manufacturers Literature (Marantz Stereo Console Model 7 brochure)

Model page created by Howard Craven. See "Data change" for further contributors.
