538

• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17796

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

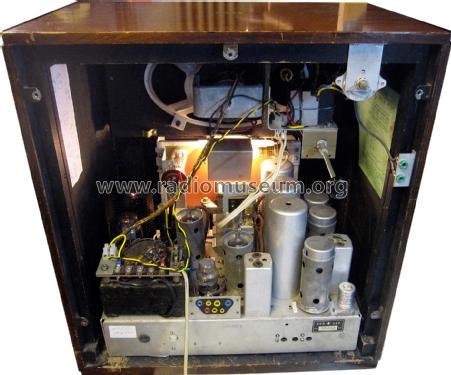

• Number of Tubes
• 9

• Valves / Tubes
• W63 X64 Z63 or KTZ63 W63 D63 Z63 or KTZ63 6G5 KT66 U50

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 195-255 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 538 - Marconi Co. Marconiphone,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• Same chassis as the Marconiphone 538 and 539 radiograms and also the HMV 469 table radio.

• Price in first year of sale
• 20.00 GBP

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Literature/Schematics (1)
• Trader sheets 318 and 703
