51C 3V Ch= 551C

51C 3V Ch= 551C; Marconi marque, Cie. (ID = 1228340) Radio 51C 3V Ch= 551C; Marconi marque, Cie. (ID = 1228341) Radio
51C 3V Ch= 551C; Marconi marque, Cie. (ID = 1228342) Radio 51C 3V Ch= 551C; Marconi marque, Cie. (ID = 1228343) Radio
51C 3V Ch= 551C; Marconi marque, Cie. (ID = 1228344) Radio 51C 3V Ch= 551C; Marconi marque, Cie. (ID = 1483133) Radio
51C 3V Ch= 551C; Marconi marque, Cie. (ID = 1483134) Radio
Use red slider bar for more.

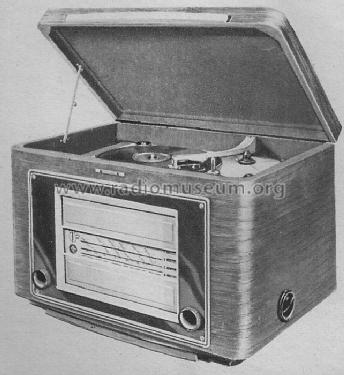

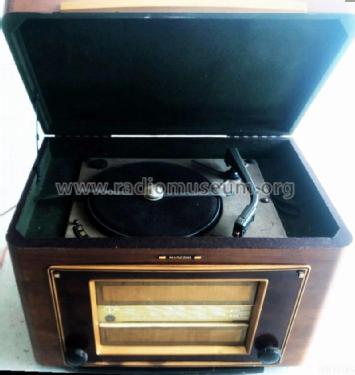

51C 3V Ch= 551C; Marconi marque, Cie. (ID = 1228340) Radio
Marconi marque, Cie.: 51C 3V Ch= 551C [Radio] ID = 1228340 700x517
Select picture or schematic to display from thumbnails on the right and click for download.
For model 51C 3V Ch= 551C, Marconi (marque), Cie. Fse. du Gramophone; Paris

Country:  France
Manufacturer / Brand:  Marconi (marque), Cie. Fse. du Gramophone; Paris
Year: 1951–1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EL41 AZ41 EM34
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: 51C 3V Ch= 551C - Marconi marque, Cie. Fse. du
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 370 x 358 mm / 21.3 x 14.6 x 14.1 inch
Notes

Mêmes caractéristiques que modèle 51 (551). 4 gammes d'ondes: GO 1000 à 2000 m, PO 185 à 575 m, OC 16 à 51 m, et OC étalée sur 50 m. Cadran central lumineux. Tonalité variable.

Muni d'une platine 3 vitesses.
Ébénisterie noyer verni, façade laquée brun.

Le numéro du type 51C ne figure pas dans l'appareil.

Net weight (2.2 lb = 1 kg) 14.650 kg / 32 lb 4.3 oz (32.269 lb)
Mentioned in -- Original prospect or advert (Saison 1953)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Marconi (marque), Cie. Fse. du Gramophone; Paris
Here you find 96 models, 77 with images and 31 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
